7.15 Assembling the intake system
1

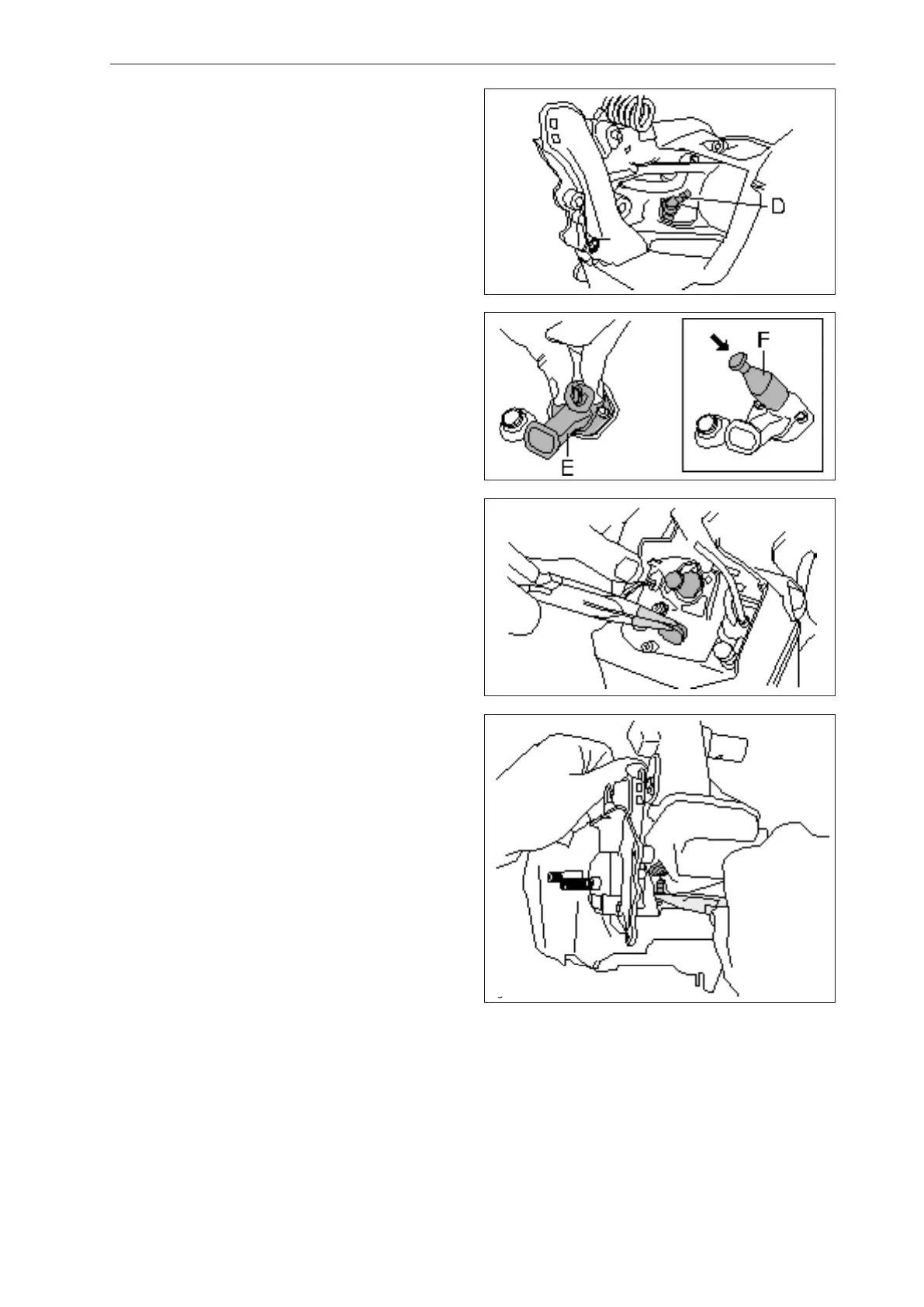

Tighten the inlet bellows. Make sure the nipple D
is attached to the pump hose, see gure 60.
Fig 60
Fig 61
Fig 62
Fig 63
2
Press the fuel intake together on the inlet bellows
E and thread on the tting cone F, see gure 61.
3
Ret the tank unit. Insert the tting cone as shown
in gure 62. Use pliers with a shrinkable tube to
insert the air intake bellows B and C, see gures
57 and 62. Pull o the tting cone and make sure
the bellows is placed correctly.
4
Push the nipple back through the grommet to the
saw chain tank and t the tank unit.
5
Assemble the vibration elements as shown in gu-
res 55 and 56.
Fit the:
• carburettor
• handle cover
• air lter holder
• air lter
• air lter housing
• clutch cover
