English – 33

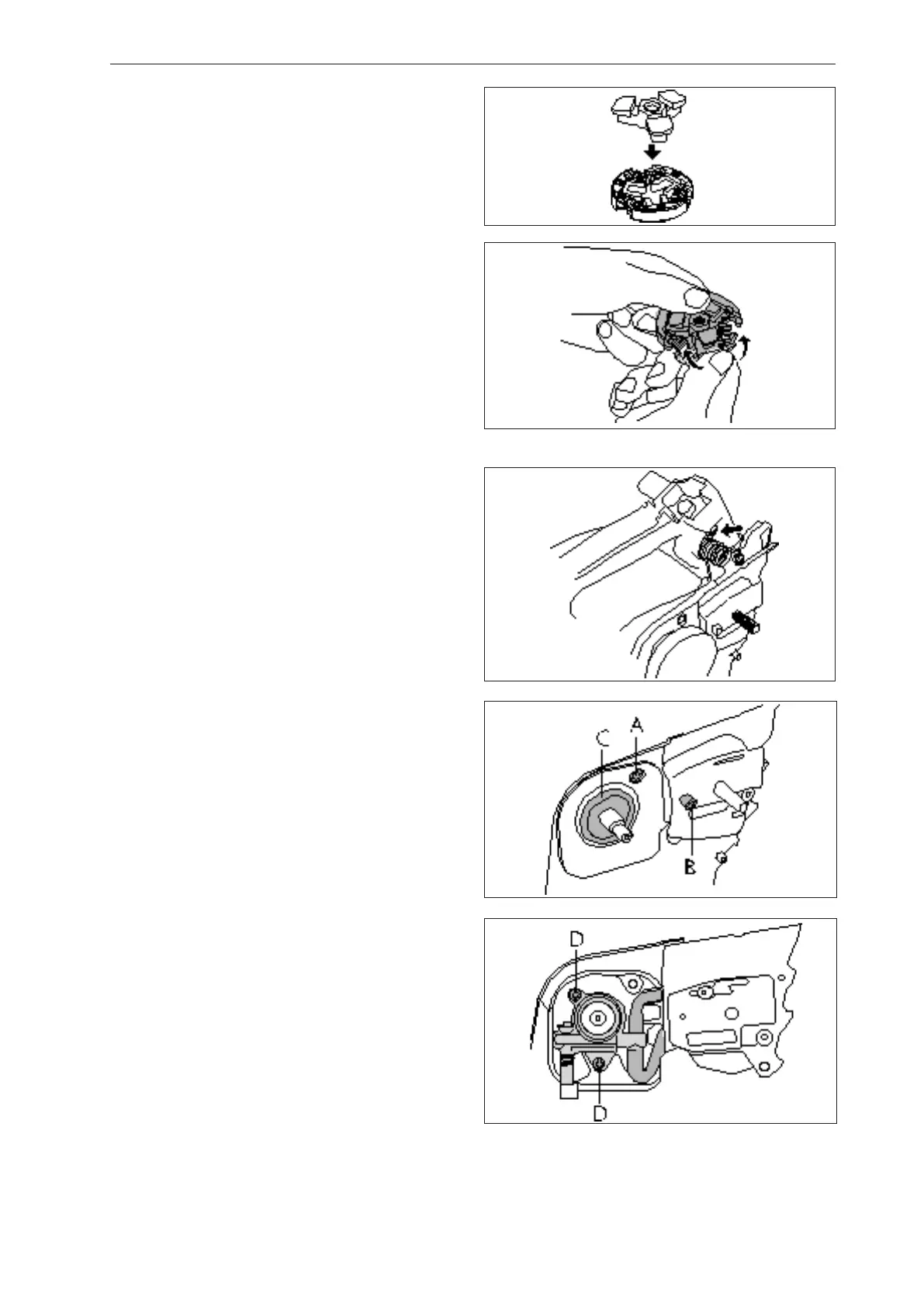

7.10 Assembling the centrifugal clutch
1
Hook the springs into the clutch shoes. Press in
the clutch hub from above while bending back the
clutch shoes around the clutch hub as shown in
gures 23 and 24.
2
Fit the clutch by turning it counter clockwise.
3
Reinstall the spark plug.
4
Assemble the clutch cover, chain and bar.
Repair instructions
Fig 23
Fig 24
7.11 Dismantling the oil pump and
screen
1
Dismantle the centrifugal clutch as in the chapter
”Dismantling the centrifugal clutch”.
2
Dismantle the vibration element from the tank unit.
Fig 25
Fig 26
3
Unscrew the screw B. Remove the chain guide
plate. Unscrew the screw A and pump drive wheel
C and then lift of the cover.
Fig 27
4
Unscrew the screws D.
