34 – English
Repair instructions
Cleaning and checking
• Clean and check all parts carefully. Parts must
be replaced if cracked or showing signs of
other defects. Always use original spare parts.
• Lubricate all moving parts with saw chain oil.

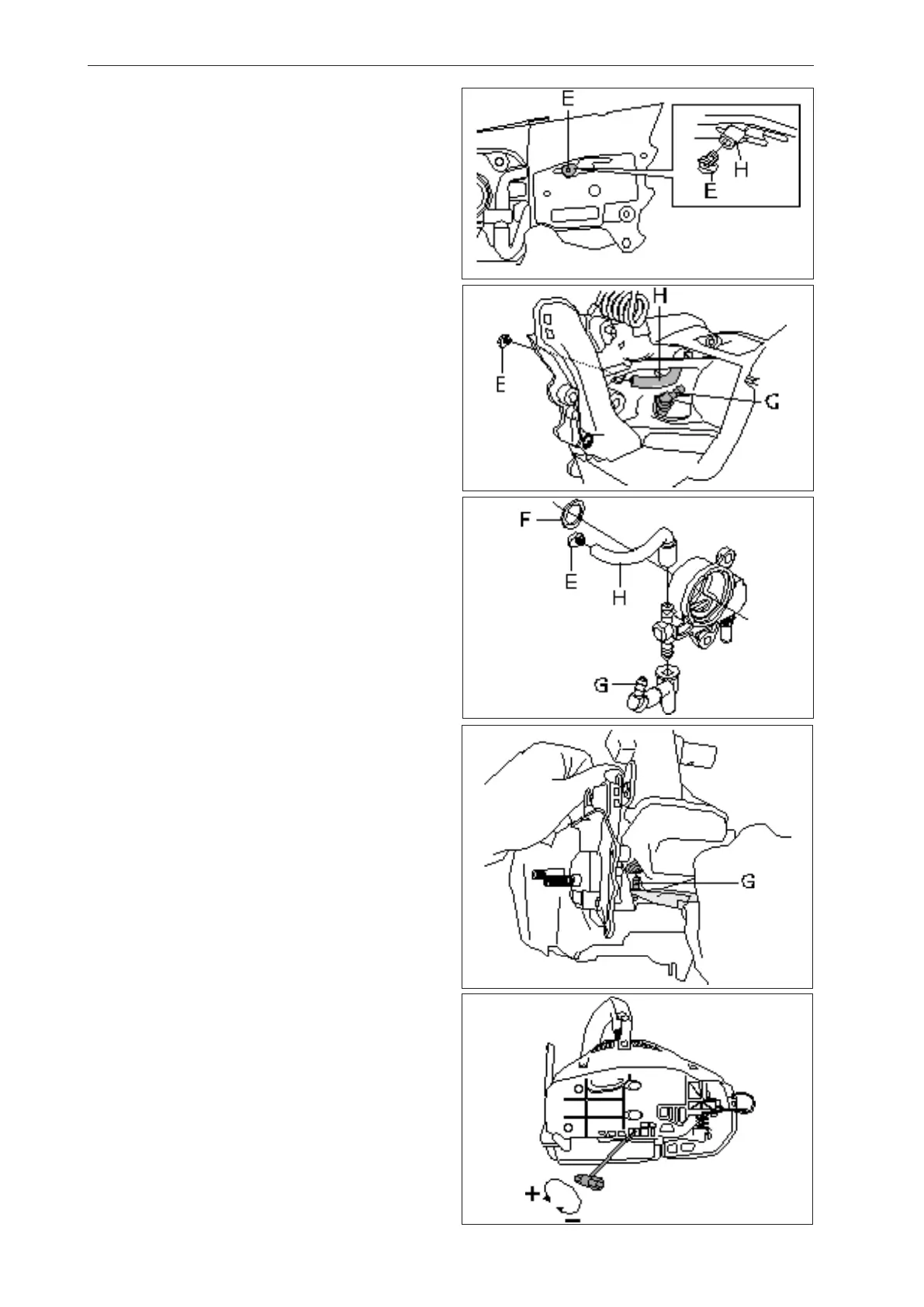

7.12 Assembling the oil pump and screen
1
Assemble the pump housing and guide hoses
H and G into place as shown in gure 29. Note!
Nozzle E must be placed facing in the right direc-
tion, see gure 28.
2
Use pliers with a shrinkable tube to press nipple G
upwards through the rubber grommet to the oil tank.
3
Slide the washer F on the crankshaft. Ret the
cover and the pump drive wheel. Screw the chain
guide plate into place using screw B. Assemble
the vibration element in the tank unit as shown in
gure 25.
Fig 30
Fig 29
Fig 31
Fig 32
Fig 28
5
Use pliers with a shrinkable tube in order to loosen
hose H so that nozzle E can be loosened. See -
gures 28 and 30. Note! Figure 30 shows the inside
without tank unit.
If you experience problems loosening the hose,
dismantle the tank unit, see chapter ”Dismantling
the tank unit”.
The adjuster screw for the oil pump is located on the
bottom of the saw, see gure 32.
