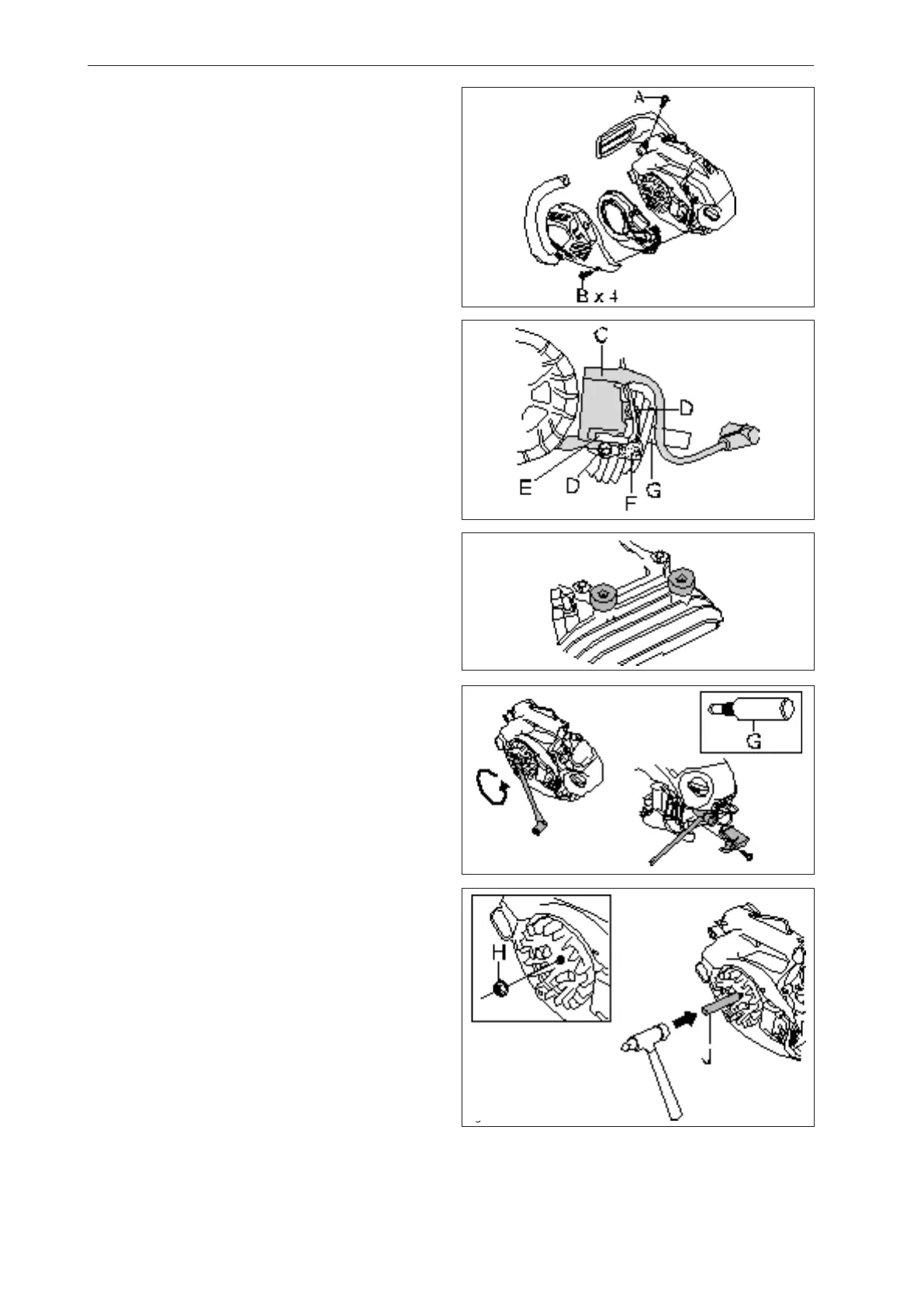

7.7 Dismantling the ignition module

and ywheel

Loosen the starter with the screws A and B (four

screws).

Fig 9

Fig 10

Loosen the screws D and remove the entire igni-

tion module. Remove the spacers between the

cylinder and the ignition coil, see gure 11. Loosen

the electrical cable E and the earthing cable F from

the ignition module C.

Fig 12

Unscrew the spark plug and screw in the piston

stop G.

Fig 13

Loosen ywheel nut H with a suitable socket span-

ner and then remove the nut, see gures 12 and

13.

Knock on the mandrel J with a suitable metal ham-

mer until the ywheel comes o from the shaft.

Remove mandrel and ywheel, see gure 13.

Cleaning and checking

• Clean all parts, especially the tapers on the

ywheel and shafts.

• Check the ywheel for cracks and any other da-

mage.

Fig 11
