7.14 Dismantling the intake system
Dismantle:
• clutch cover
• air lter housing
• air lter
• air lter holder
• handle cover
• carburettor
1
Dismantle the vibration elements from the tank unit
as shown in gures 55 and 56.
Cleaning and checking
Clean and check all parts carefully. Parts must
be replaced if cracked or showing signs of other
defects. Always use original spare parts.
2
Gently press out the inlet bellows A, B and the air
intake bellows C, see gure 57.
3
Loosen the nipple on the saw chain oil hose and lift
o the tank unit.

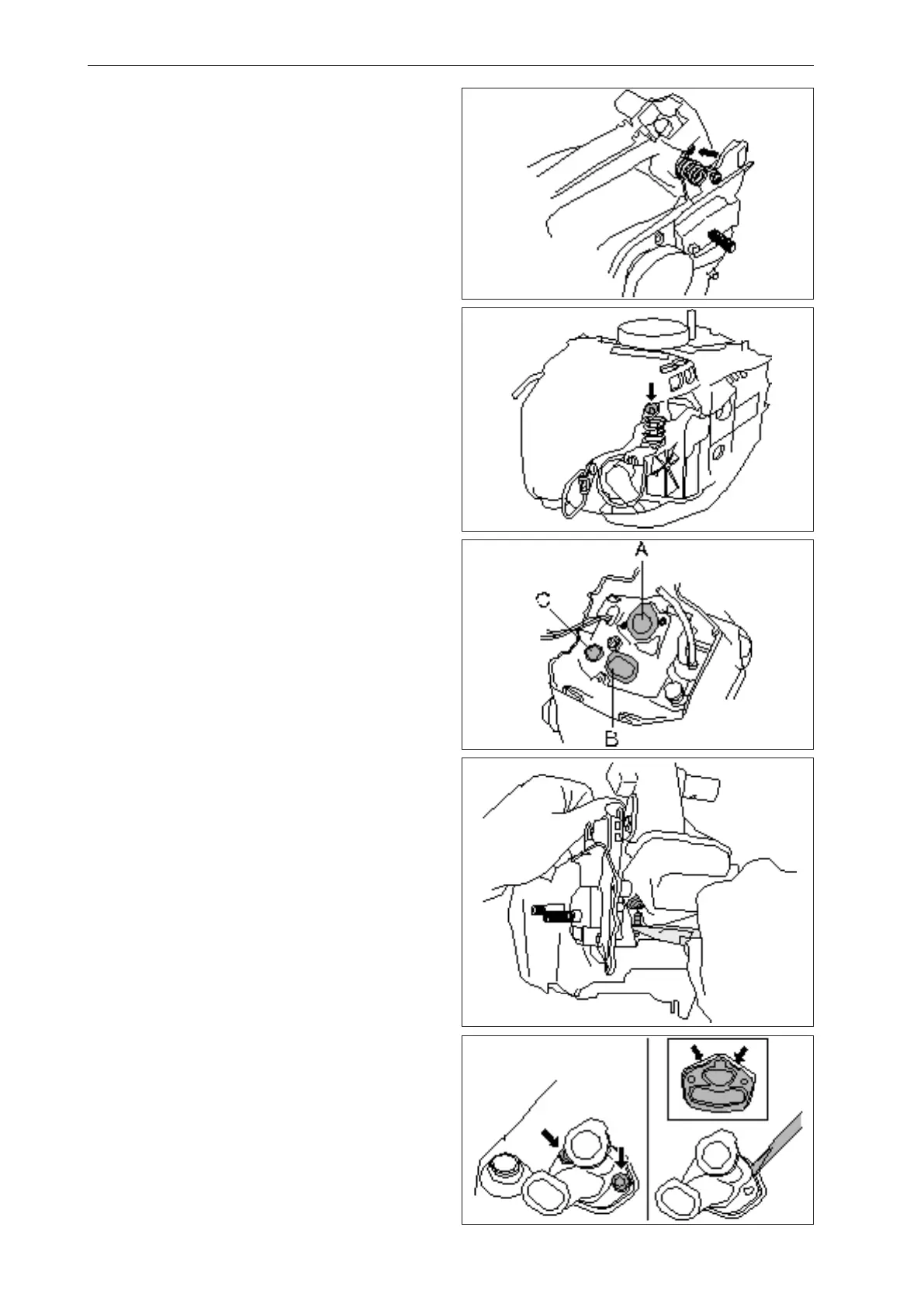

Fig 56
Fig 57
Fig 55
Fig 58
3
Unscrew the inlet bellows, see gure 59.
Fig 59
