UNItivity 5000 System Overview
User Manual
Copyright © 2022 Zinwave. All rights reserved. 1-6

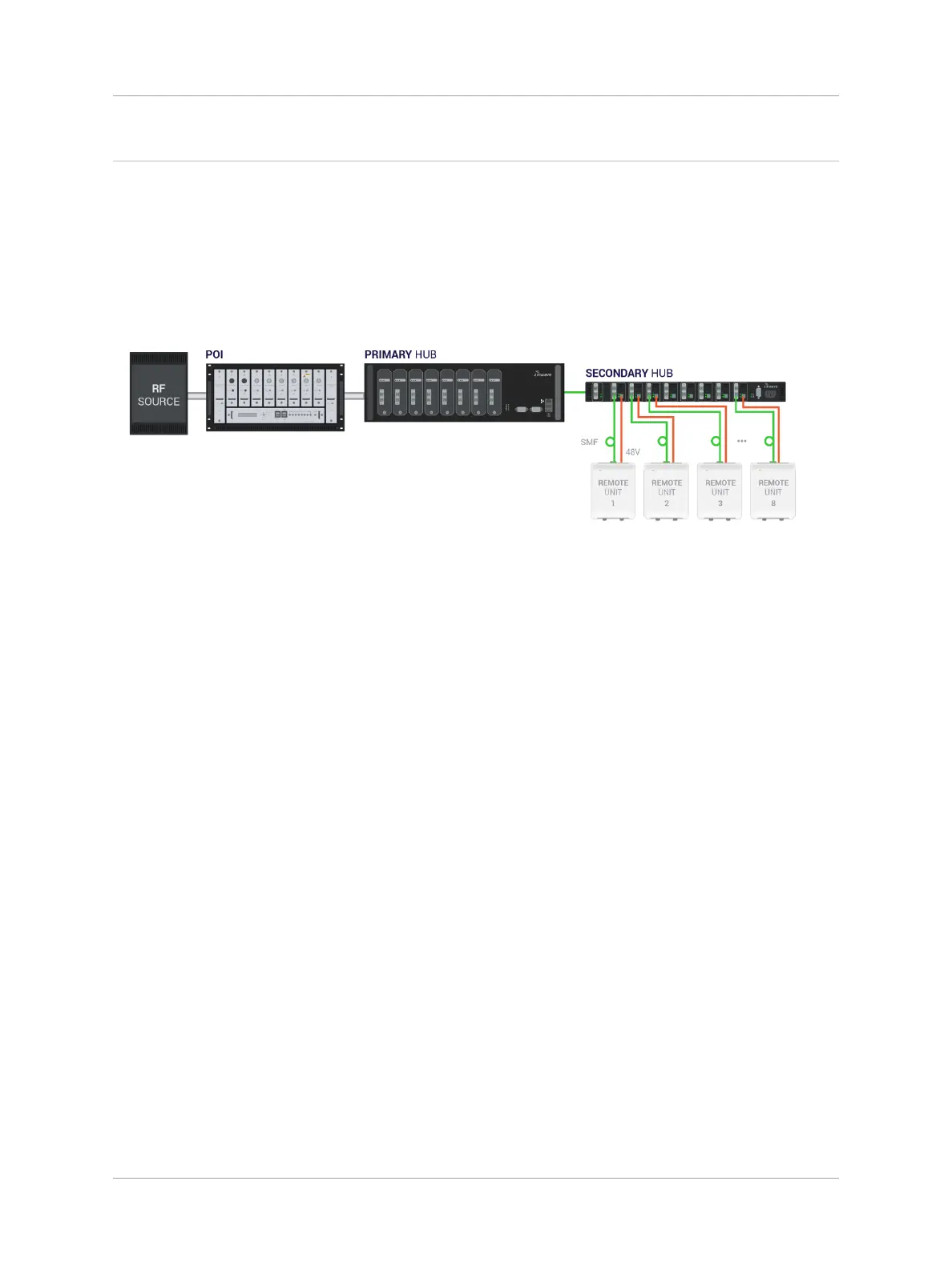

1.4.2 How the Active POI Fits in
The Active POI provides the interconnection between the RF source (for example, high power sources
like BTS or repeaters where significant attenuation is needed) and the Service Module that is installed
in the Primary Hub. Its compact design provides multiple passive elements for signal conditioning/
attenuation.
The POI integrates directly to the UNItivity 5000 system and includes overload protection, filtering,
attenuation, and combining/splitting. Reliability is designed in with a single point of connection to BTS
Duplex and a Simplex connection to the Primary Hub.
