5.2 Installing Secondary Hub

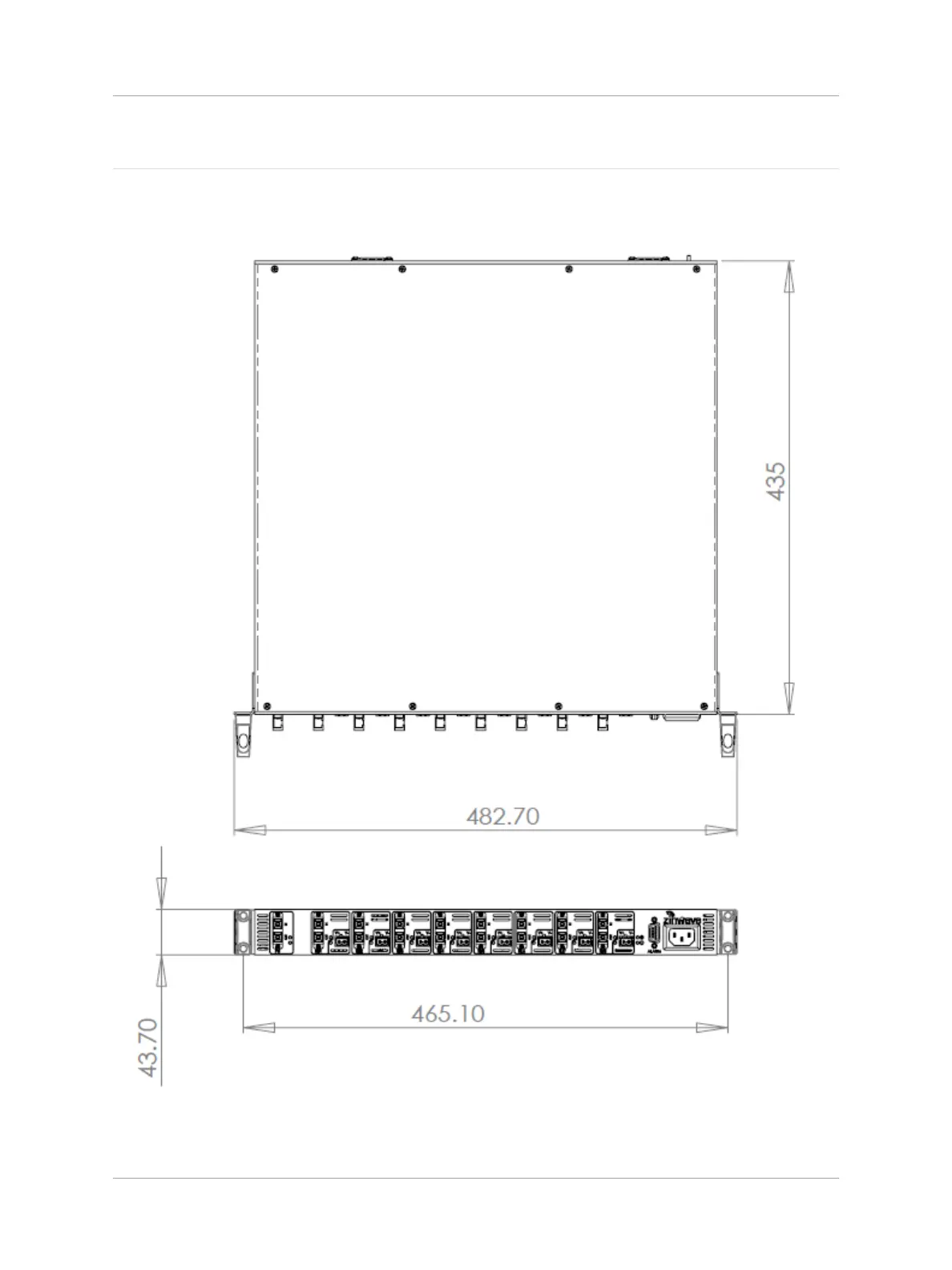

The Secondary Hub is designed to mount directly into a 19-inch rack framework with no additional

mounting materials. Below dimensions are in millimeters.
