Notus User Manual
Page | 9 Copyright©2021 ZKTECO CO., LTD. All rights reserved.
Installation Set-up 1.4
Installation Site 1.4.1
This product is suitable for a semi-outdoor environment. Please install it in an environment without
direct sunlight exposure. Also, avoid installing the device near glass doors and windows.

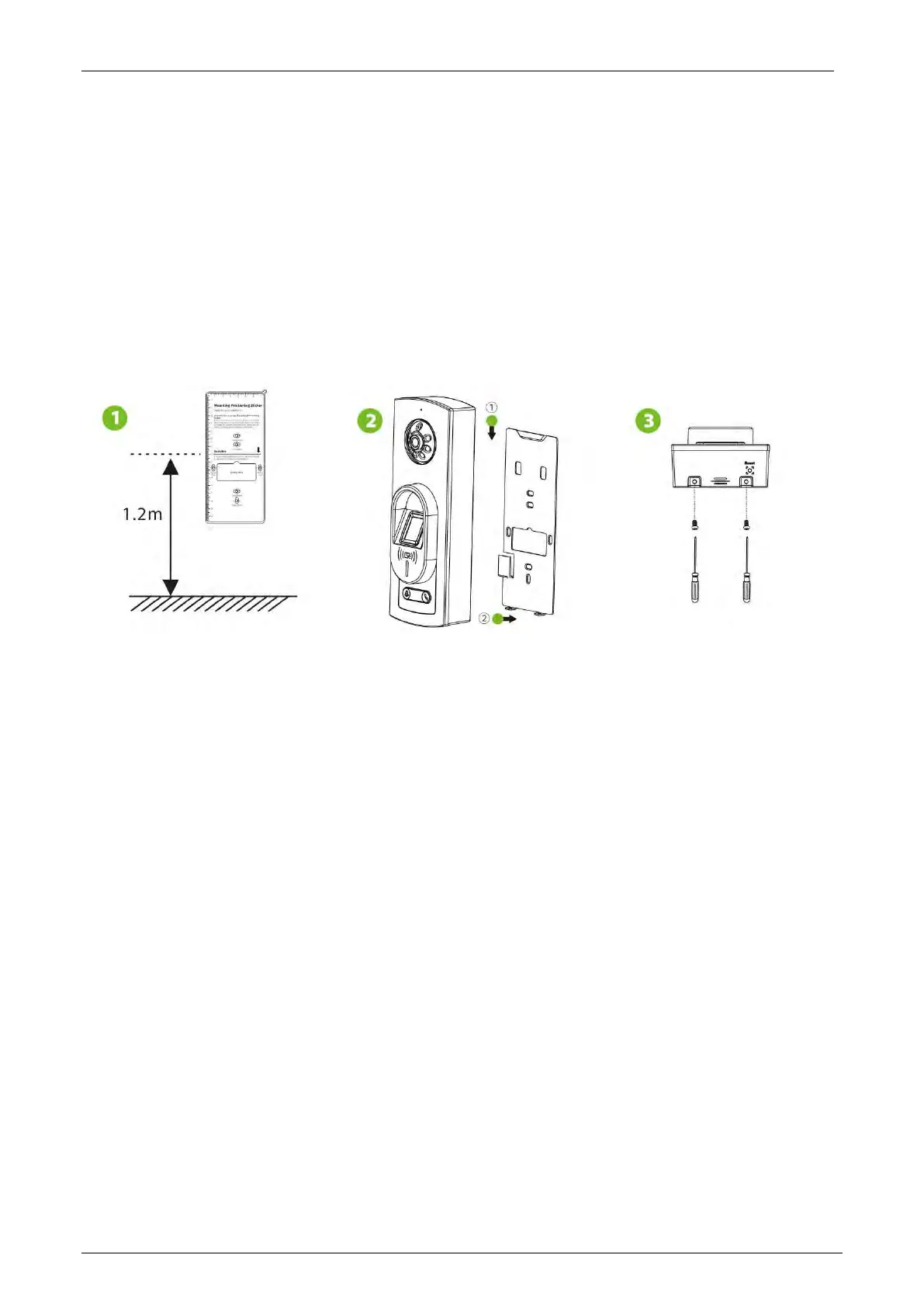

Installation Steps 1.4.2
Step 1: Attach the mounting template sticker to the wall, and drill holes according to the mounting
paper. Fix the backplate on the wall using the wall mounting screws.
Step 2: Attach the device to the backplate.
Step 3: Fasten the device to the backplate with two security screws.
Connection Procedure 1.5
Auxiliary Devices and Buttons Connection 1.5.1
• Connect the Exit Button to the GND and BUT terminals.
• Connect the Door Sensor to the SEN and GND terminals.
• Connect the Alarm to the AL + and AL- terminals.
• Connect the Auxiliary Device to the GND and AUX terminals.
