Notus User Manual
Page | 12 Copyright©2021 ZKTECO CO., LTD. All rights reserved.

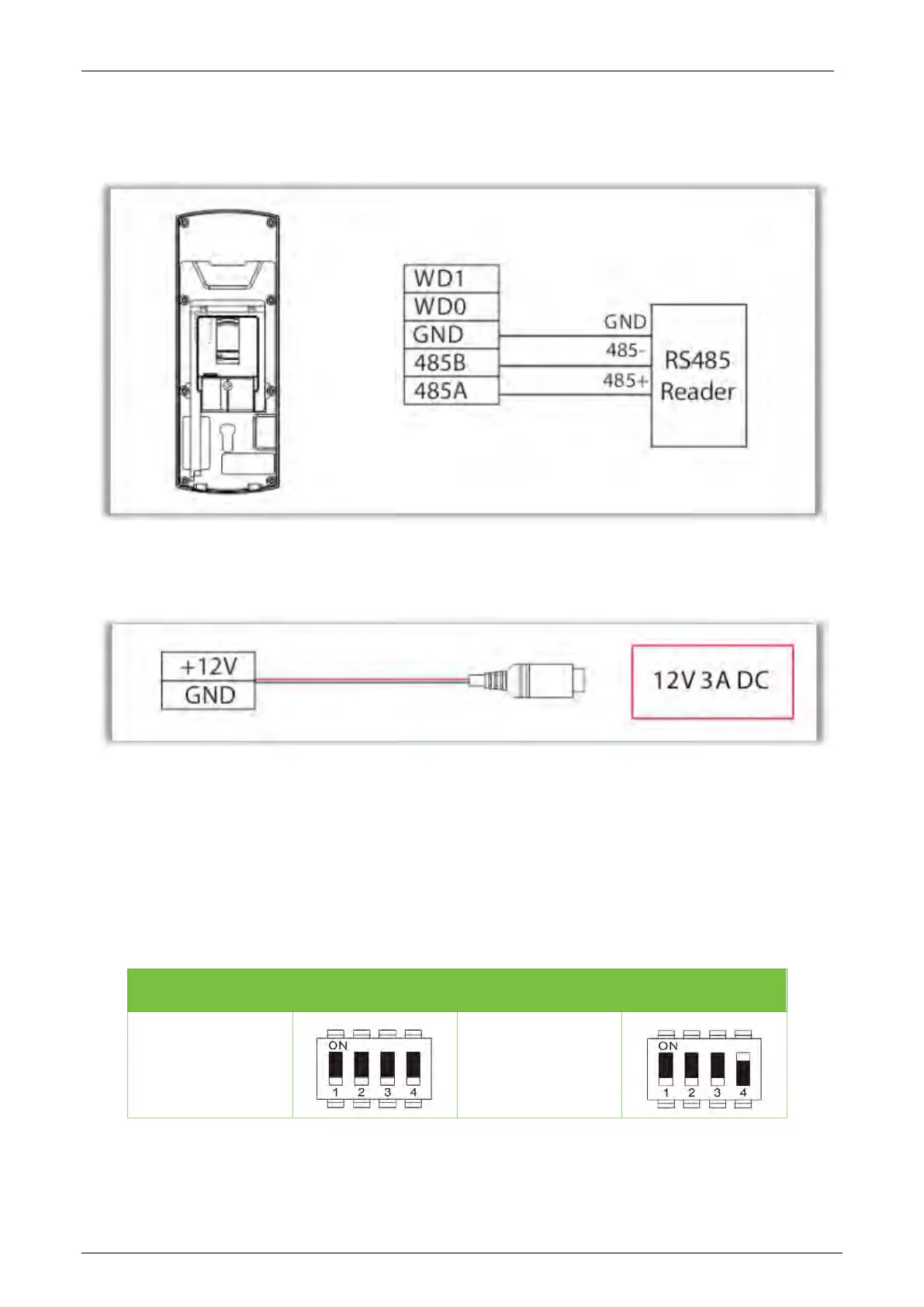

RS485 Connection 1.5.5
Power Connection 1.5.6
DIP Switch Settings 1.5.7
The control panel adopts a rotary DIP switch. The numbers 1 to 4 of the DIP switch are set as the
device number for RS485 communication. The code is binary, and the numbering starts from left to
right. When the switch is set upwards (ON) position, it indicates 1 (ON); when the switch is set
downwards (OFF), it means 0 (OFF). For example, to set a device number as 15=1+2+4+8, which
corresponds to the binary code 1111, move the numbers 1, 2, 3, and 4 to ON position.
485 Address Switch Settings 485 Address Switch Settings
0
8
