6. Instructions on Sewing Operations

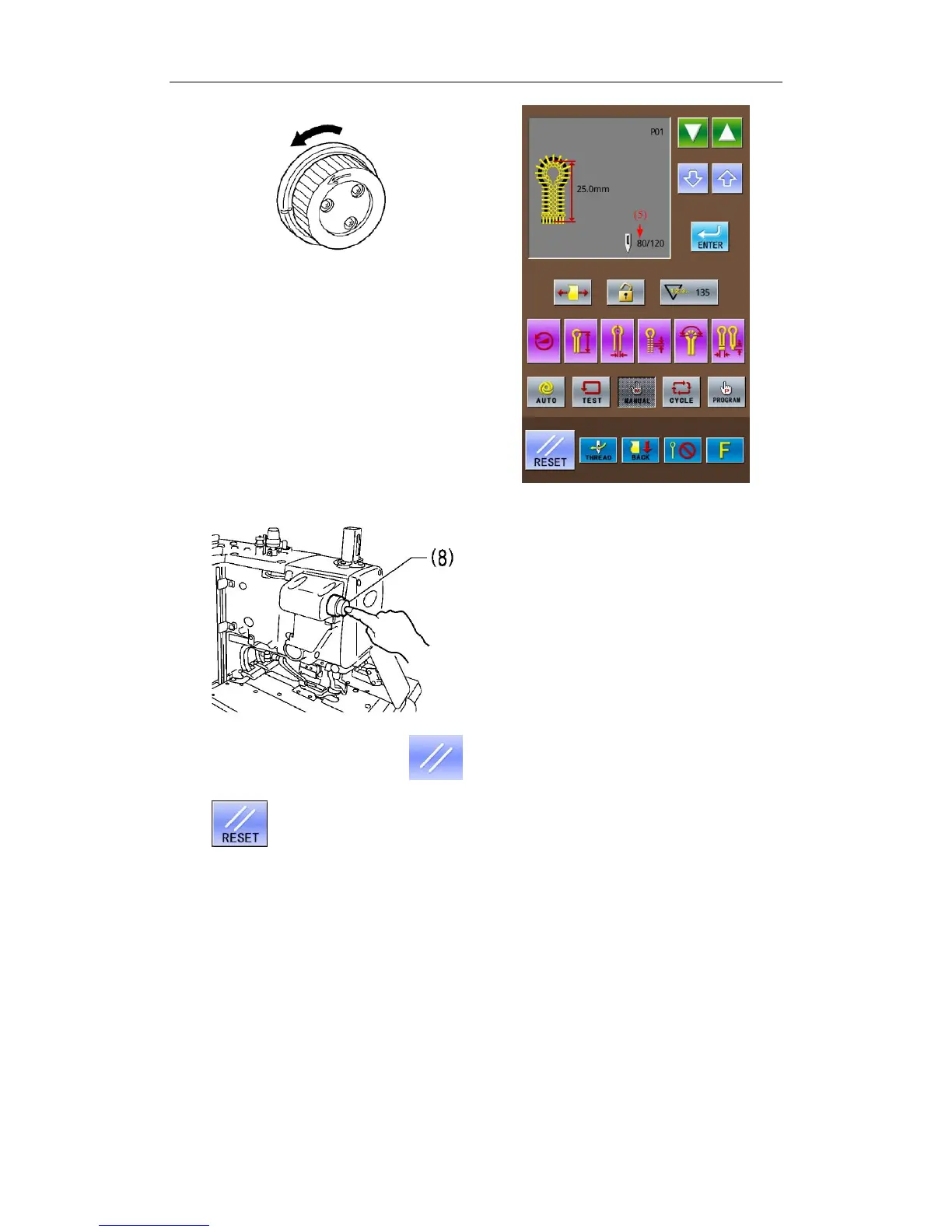

⑤ Reverse of Hand-wheel at Upper Axis
The cloth-feeding board will move to the
sewing position of the next stitch at each turning
round of upper axis hand-wheel. When the
wheel reverses for half a cycle, the leftover
stitch number (5) at sewing data display area
will reduce 1 stitch
Caution：
If the upper axis hand-wheel turns reversly,
the cloth-feeding board will not move the shape
with the set stitch form. Please don’t turn the
wheel reversely.
⑥ For stopping the manual sewing, press
emergence stop switch (8) when the
cloth-feeding board returns to the position
for laying cloth
The “Pause Switch Is Pressed In Sewing” is
displayed on operation board. Press to
return to sewing interface and then
press
.
35
