6. Instructions on Sewing Operations

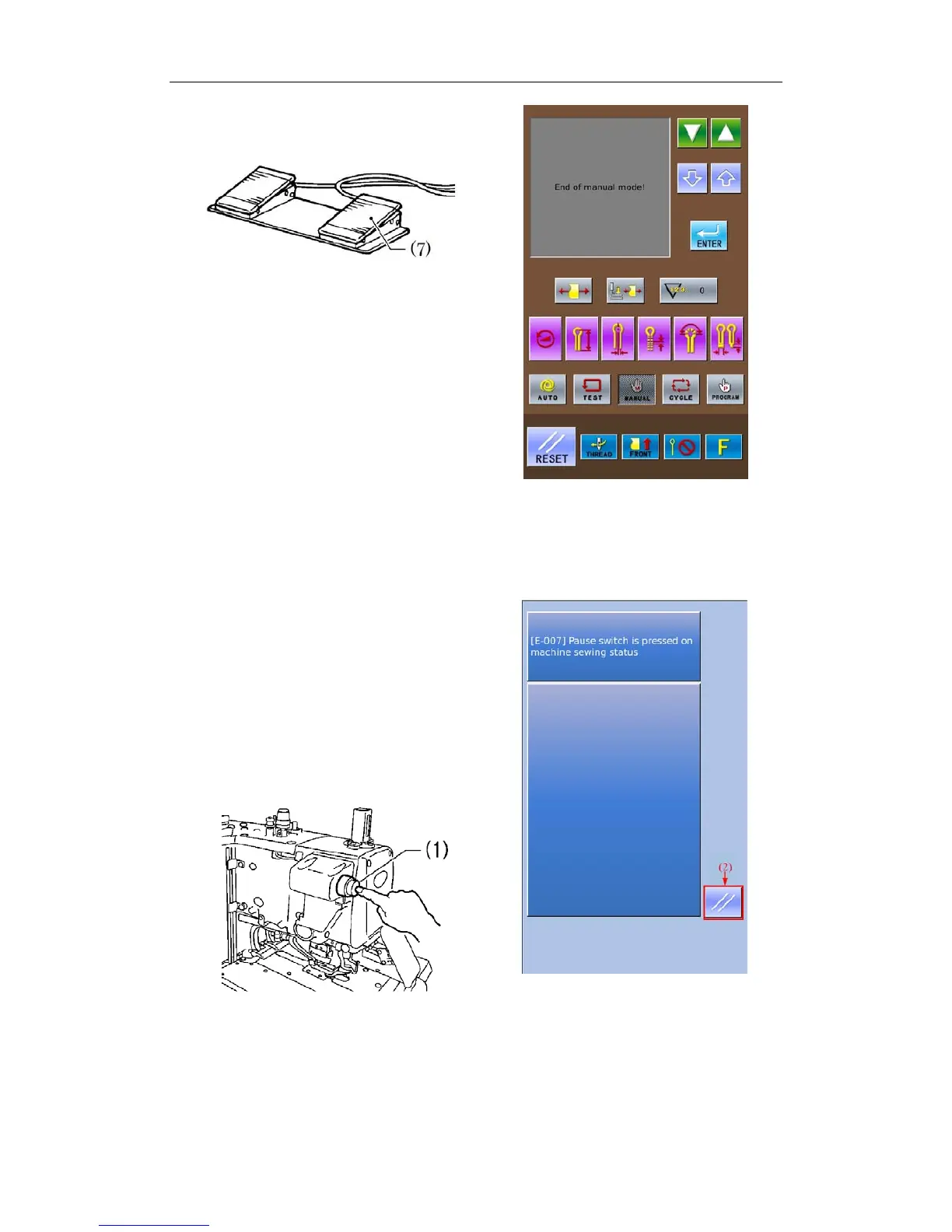

⑦ At Last Stitch
The needle rod stops at the upper position
of needle. Step start pedal (7) at this time.
(Hold it until the cloth-feeding board
returns to the position for laying cloth.)
In thread-trimming actions, when the
cloth-feeding board returns to the position for
laying cloth, the system will hint “END OF
MANUAL MODE” in the operation panel.
Caution：
When setting knife action as
“Cut-after-Sewing”, user shall look out the
action of knife.
6-3 Pause Switch
Pause in Auto Sewing
The pause switch is generally used for
stopping the sewing machine at thread-breakage
and other circumstance
6-3-1 Methods for Pausing
Du
ring the sewing, press the pause switch
(1) to stop the sewing machine, and then the
operation panel will hint “InstancyStop Error”.
36
