Replacement Part Installation
3–14 www.zoll.com 9650-000278-01 Rev. B

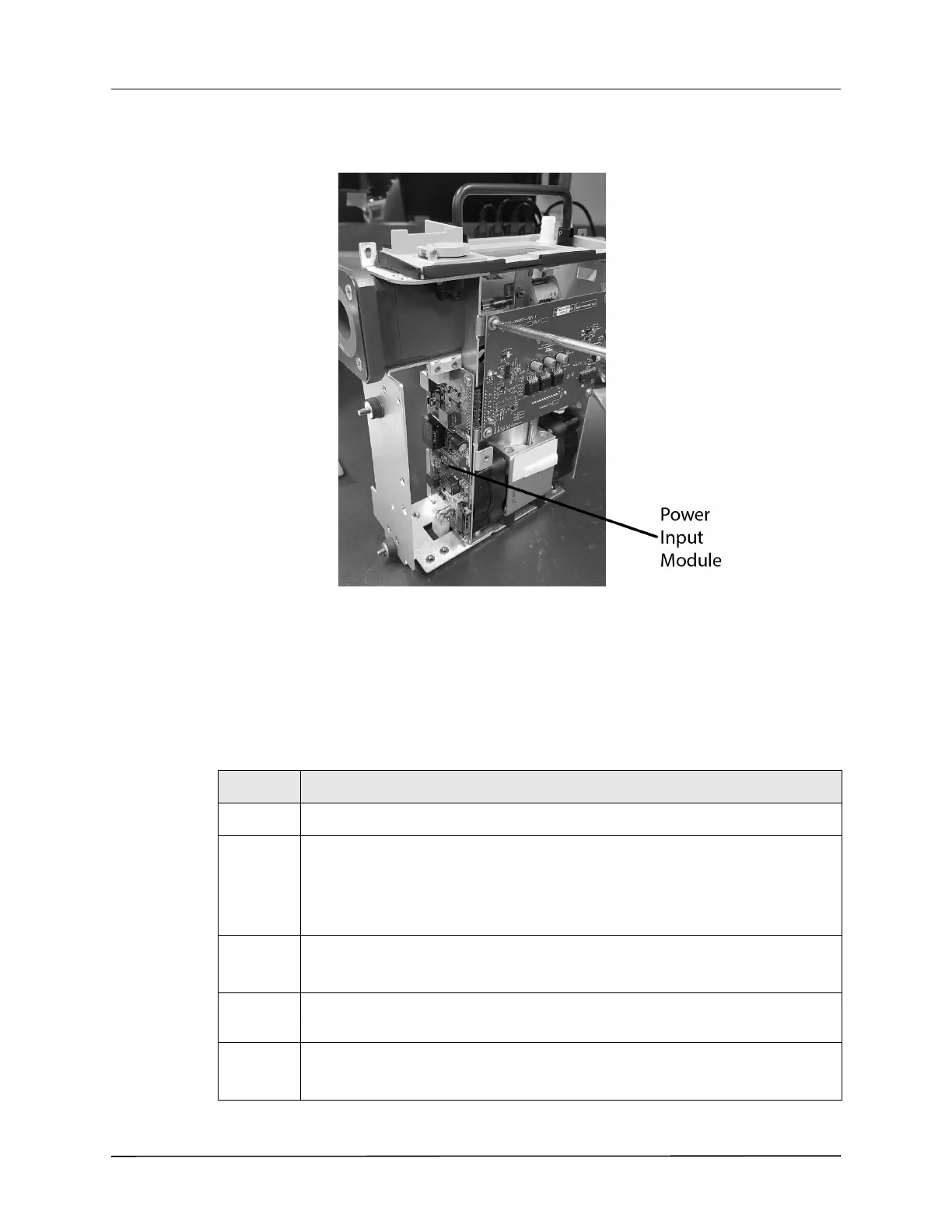

Power Interface Module Installation
Required Tools and Other Items
• Phillips-head screwdrivers
• Flat-head screw drivers
• Nut driver set
Instructions
Step Action
1 Loosen, but do not remove, the four 8-32 x 3 screws on the Exhaust Muffler baffle.
2 Remove the two 10-32 Keps nuts and the four 6-32 x 2 screws that secure the back
cover to the aspirator chassis.
Save these screws and nuts.
Remove the back cover by pulling it from the aspirator.
3 Remove the 4-40 x 1/4 screw on the dovetail mounting bracket.
Save this screw.
4 Flip the aspirator over and remove the front case assembly by lifting it straight up
away from the aspirator chassis.
5 Remove the battery compartment cover by unscrewing the four 6-32 x 5/16 screws.
Save these screws.
