906-0731-01-05 Rev. C ZOLL Ventilator Operator’s Guide D-7

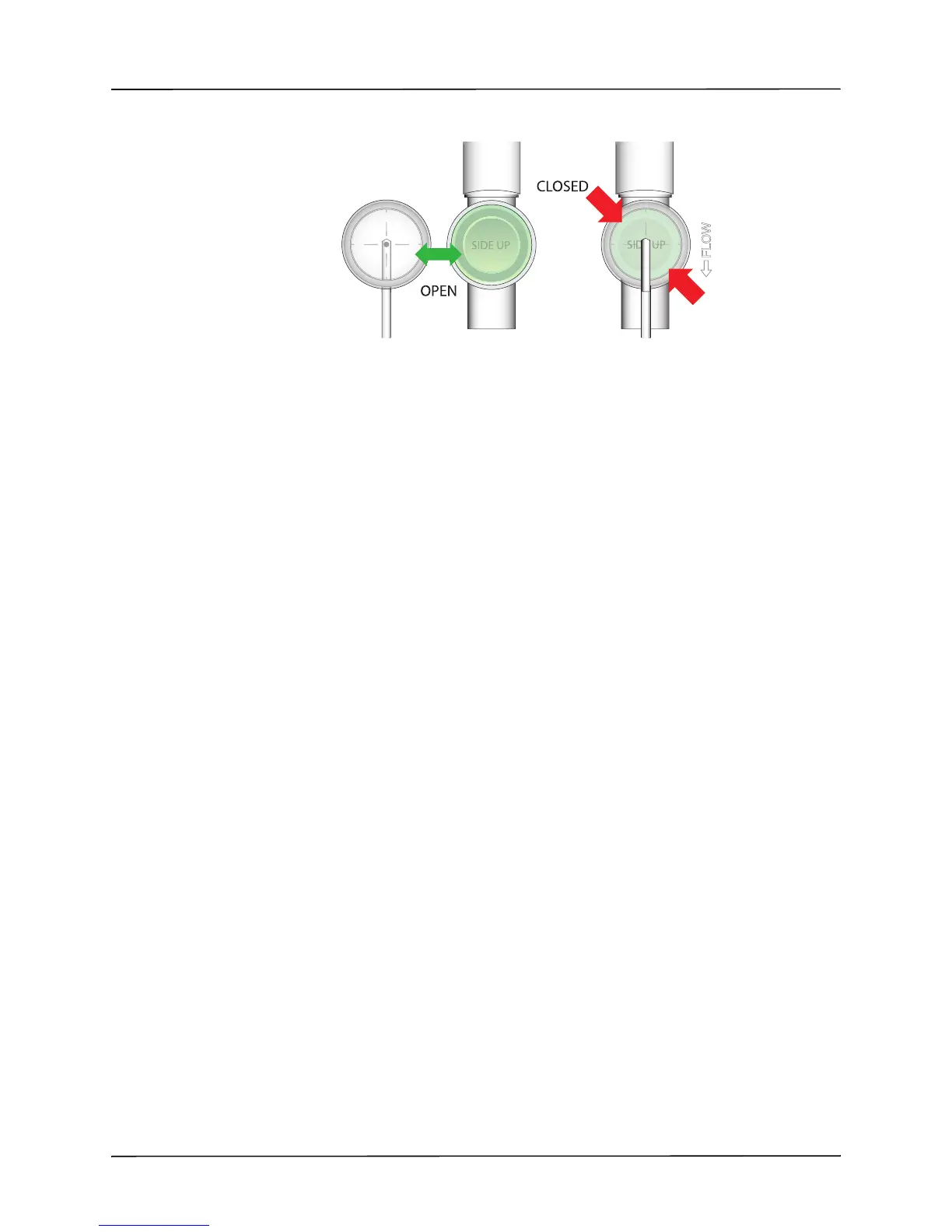

Figure D-5 Closing Exhalation Valve Cover
5. Test the patient circuit with a test lung before using it with a patient.
SNAP the exhalation
valve cover in place
to secure a tight seal
