PRODUCT OVERVIEW
2-12 www.zoll.com 906-0731-01-05 Rev. C

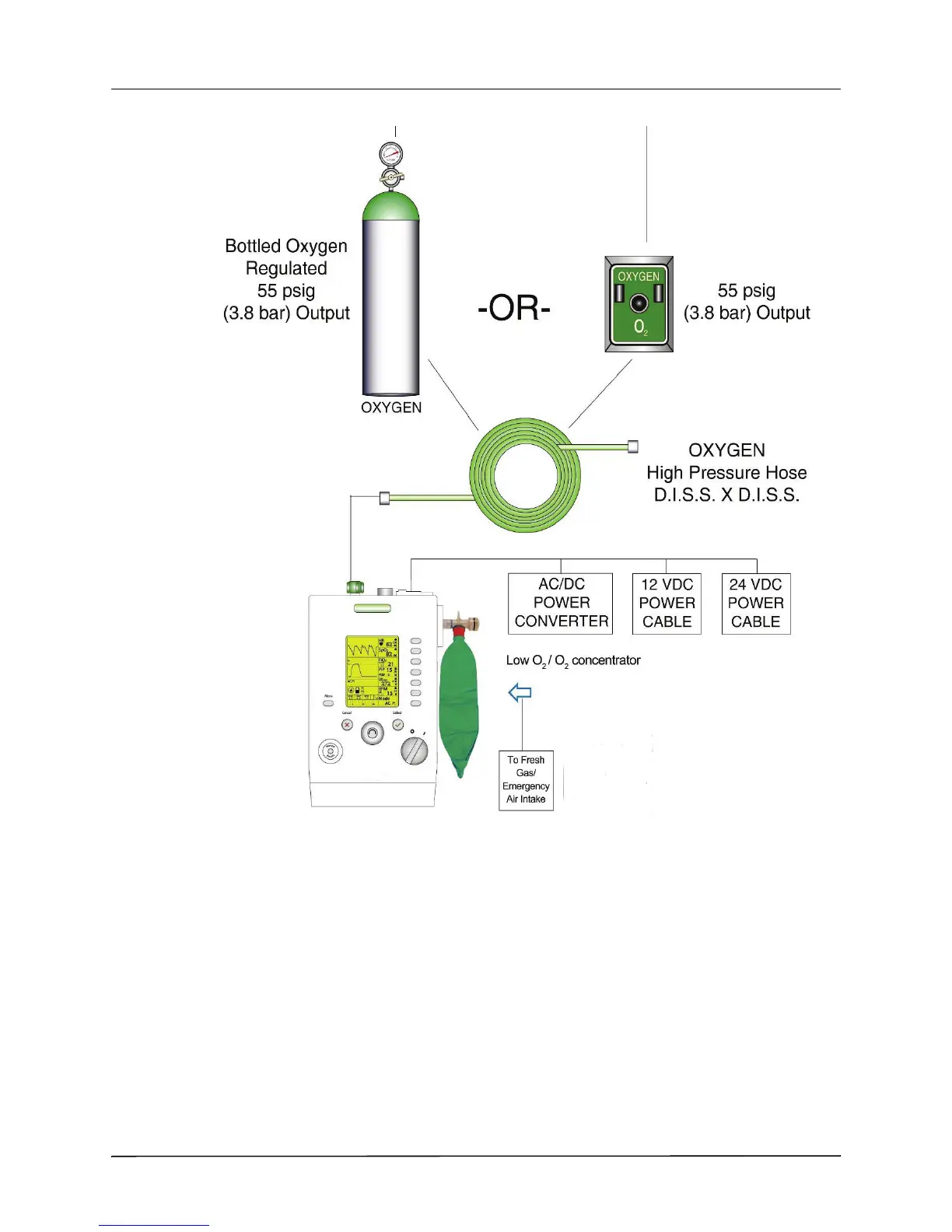

Figure 2-1 Ventilator Gas Sources
Ventilator Circuits
The ZOLL Ventilator operates using a standard disposable ventilator circuit.
The Ventilator circuit attaches to the device using three ports on the top of the device.
• Gas Output -- connects to the ventilator circuit using 22 mm ID corrugated hose. The
connector is a 22 mm male conical connection.
• Transducer (Patient Airway Pressure) -- connects to the ventilator circuit using a
3/16 inch ID transducer tubing. The barb-type connector is colored a green/blue to
distinguish it from the other connectors.
