906-0731-01-05 Rev. C ZOLL Ventilator Operator’s Guide 2-13
• Exhalation Valve -- connects to the ventilator circuit using 1/4 inch ID exhalation valve
tubing. The barb-type connector is clear anodized aluminum to distinguish it from the other
connectors (the 1/4 inch ID ventilator circuit exhalation valve tubing is clear).

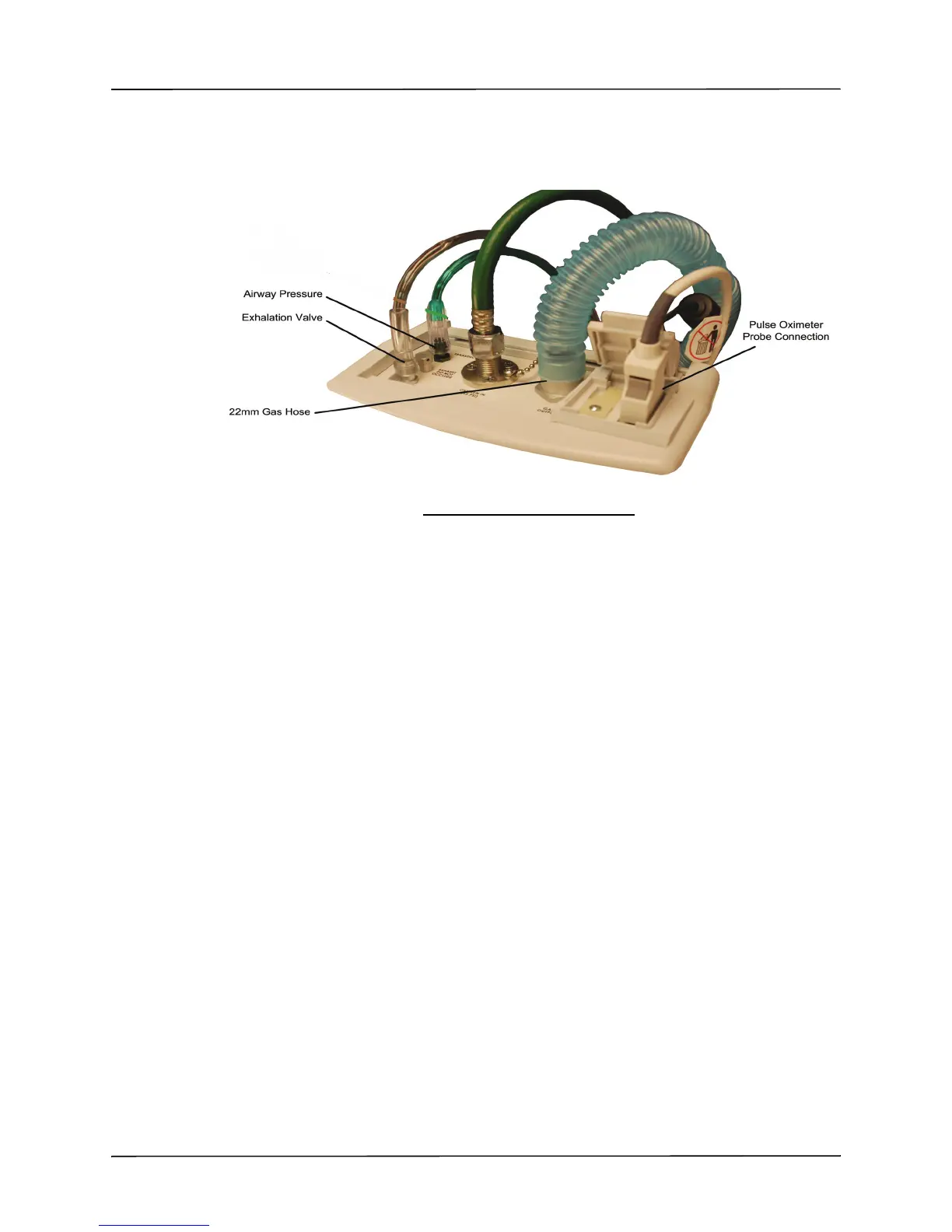

Ventilator Circuit Connections
