SETTING UP THE ZOLL VENTILATOR
3-2 www.zoll.com 906-0731-01-05 Rev. C
Warning! Always follow standard of care, which includes preparations to bag the patient.
DO NOT start up the ventilator with the patient attached.
1. Attach the Ventilator Circuit
Select the correct ventilator circuit for the patient and environment (as we describe in the
previous chapter). Always follow the instructions included with the circuit.
Attach the ventilator circuit to the ventilator’s top panel. Connect
• The 22 mm corrugated hose to the ventilator’s gas output
• The green/blue 3/16 inch ID airway pressure line to the pressure transducer
• The clear 1/4 inch ID exhalation valve control line to the exhalation valve fitting.

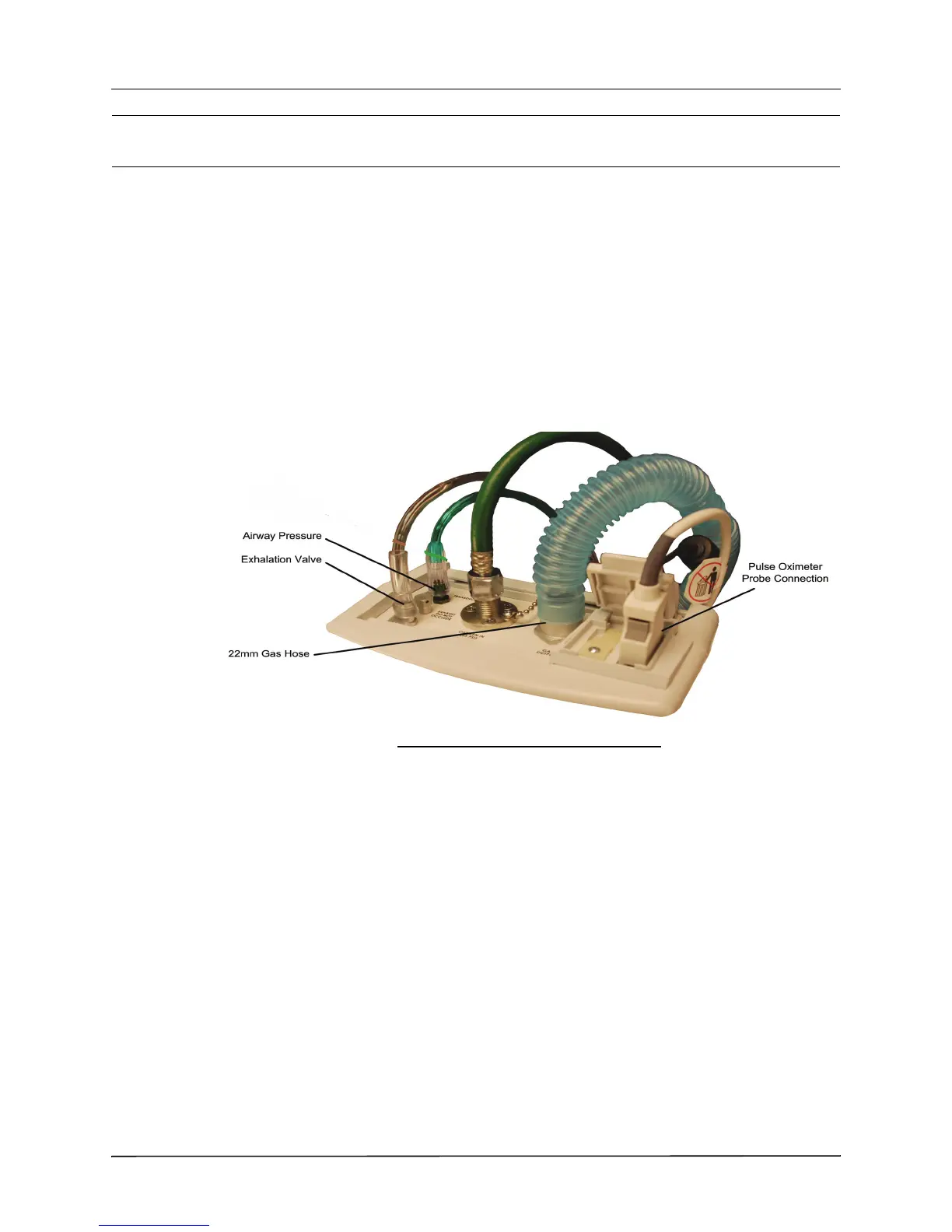

Ventilator Circuit Device Connections
