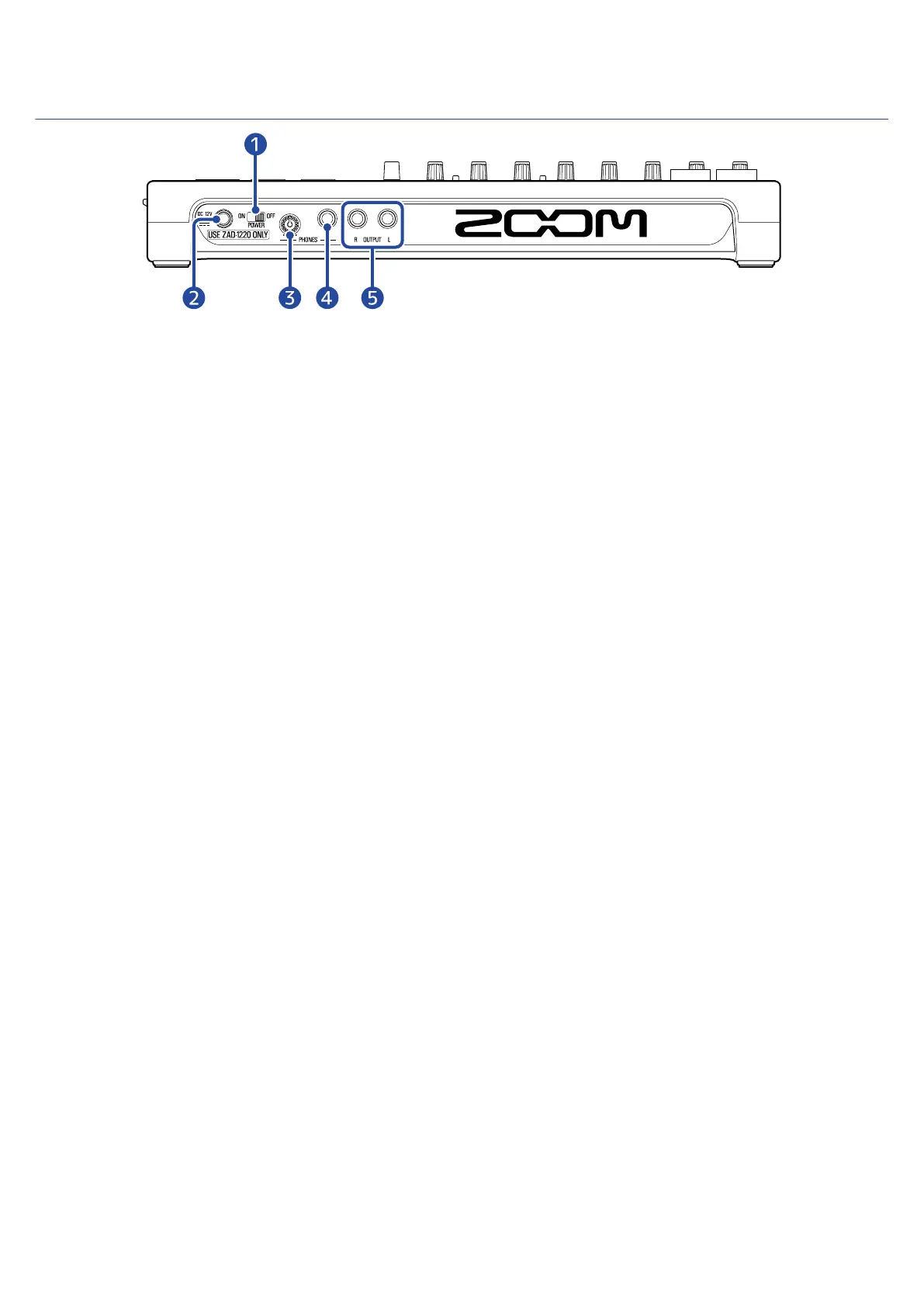

❶
POWER switch
This turns the R20 on and off.
When switched to OFF, the current mixer settings are automatically saved in the R20 and in the settings
file in the project folder on the SD card.
❷
DC 12V AC adapter connector
Connect the dedicated AC adapter (ZOOM ZAD-1220) here.
❸
PHONES output volume knob
Use to adjust the headphone volume.
❹
PHONES output jack
Connect headphones here.
❺
OUTPUT jacks
Connect these to a power amplifier, a PA system or powered monitor speakers, for example.
10
