Zoom R20 User Manual

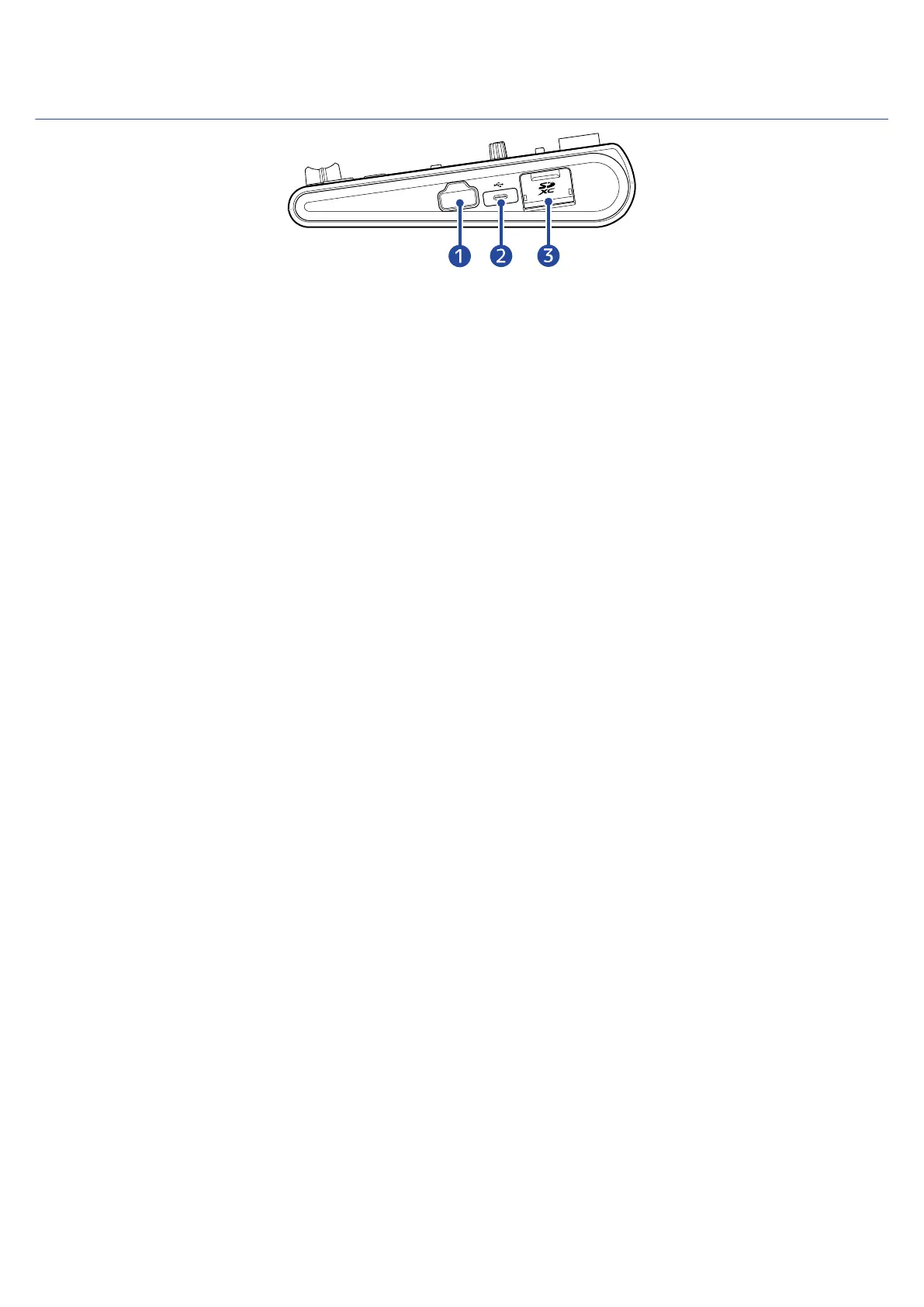

Side
❶
REMOTE jack
Connect a ZOOM BTA-1 or other dedicated wireless adapter here.
❷
USB (Type-C) port
Using this, projects can be copied to and imported from USB flash drives. USB MIDI keyboards can also
be connected and used to play synth sounds.
Connecting to a computer also makes the following possible.
• Using the R20 as an audio interface
• Using Guitar Lab to replace R20 effects
• Using the R20 as a card reader
❸
SD card slot
This supports cards that meet SDHC/SDXC specifications.
9

Zoom R20 Specifications

General

Type	Digital Multitrack Recorder
Simultaneous Recording Tracks	8
Sample Rate	44.1 kHz
Bit Depth	24-bit
EQ	3-band EQ per channel
Inputs	8 XLR/TRS combo jacks
Phantom Power	+48V
Effects	Reverb, Chorus, Delay
Storage	SD card (up to 1TB)
USB	USB 2.0
Display	4.3-inch color touchscreen
Power Supply	AC adapter
Outputs	2 x TRS, 1 x Stereo Headphone
