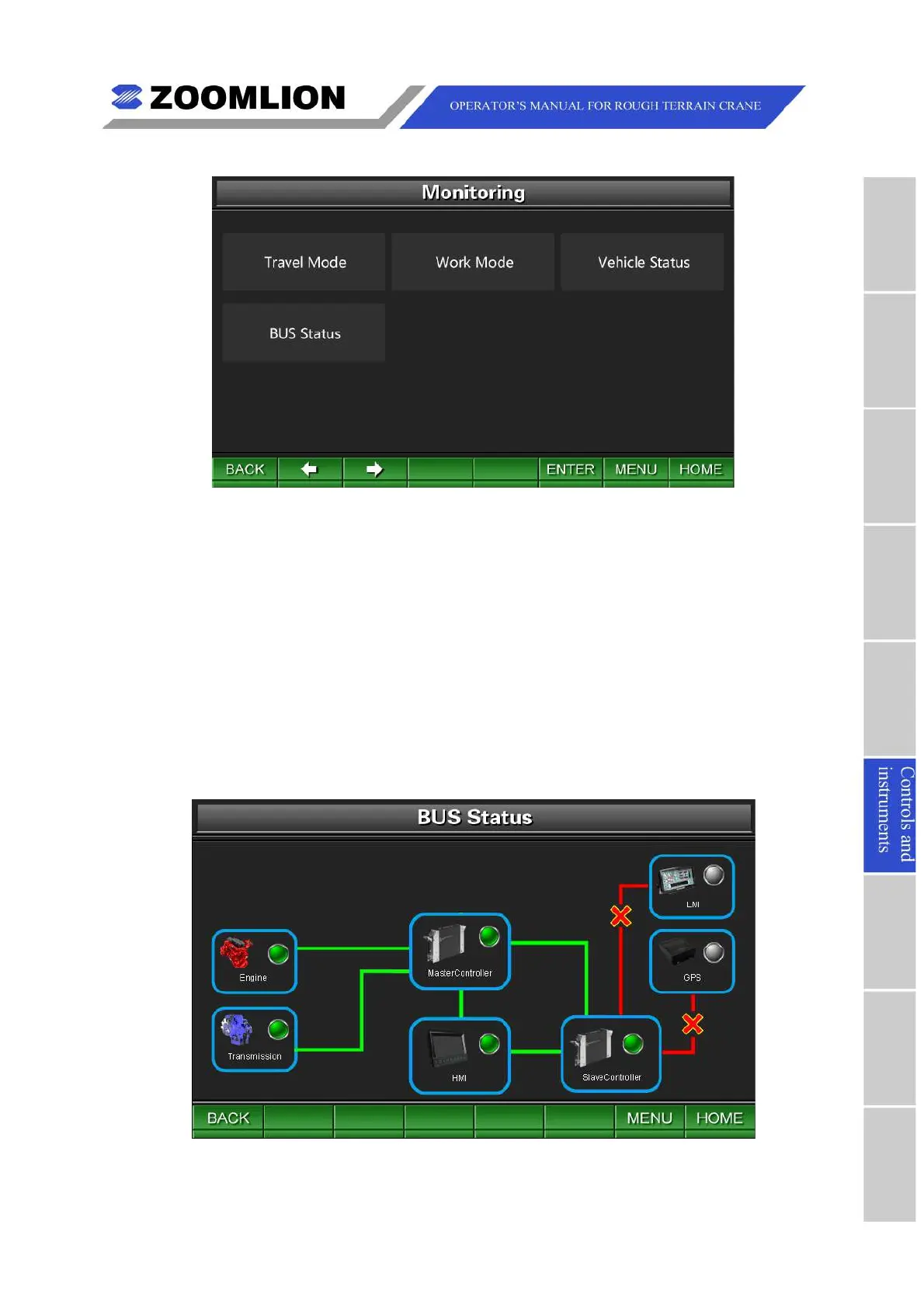

Figure06 – 20 Monitoring
(1)Travelmode:movethecursortoselecttheicon “Travelmode” andpressthekey
“ENTER” toentertheTravelModeScreen.SeeFigure06 – 13.
(2)Workmode:movethecursortoselecttheicon “Workmode” andpressthekey
“ENTER” toentertheWorkModeScreen.SeeFigure06 – 14.
(3)Vehiclestatus:movethecursortoselecttheicon “Vehiclestatus” andpressthekey
“ENTER” toentertheVehicleStatusScreen.SeeFigure06 – 15.
(4)Busstatus:movethecursortoselecttheicon “Busstatus” andpressthekey
“ENTER” toentertheBusStatusScreen.SeeFigure06 – 21.Ifthecommunication
betweenthecontrollersfails,itmeansthatthenetworksignalbetweenthecontrollers
isdisconnected.
Figure06 – 21 BusStatus
