Chapter3StructureandPrinciple

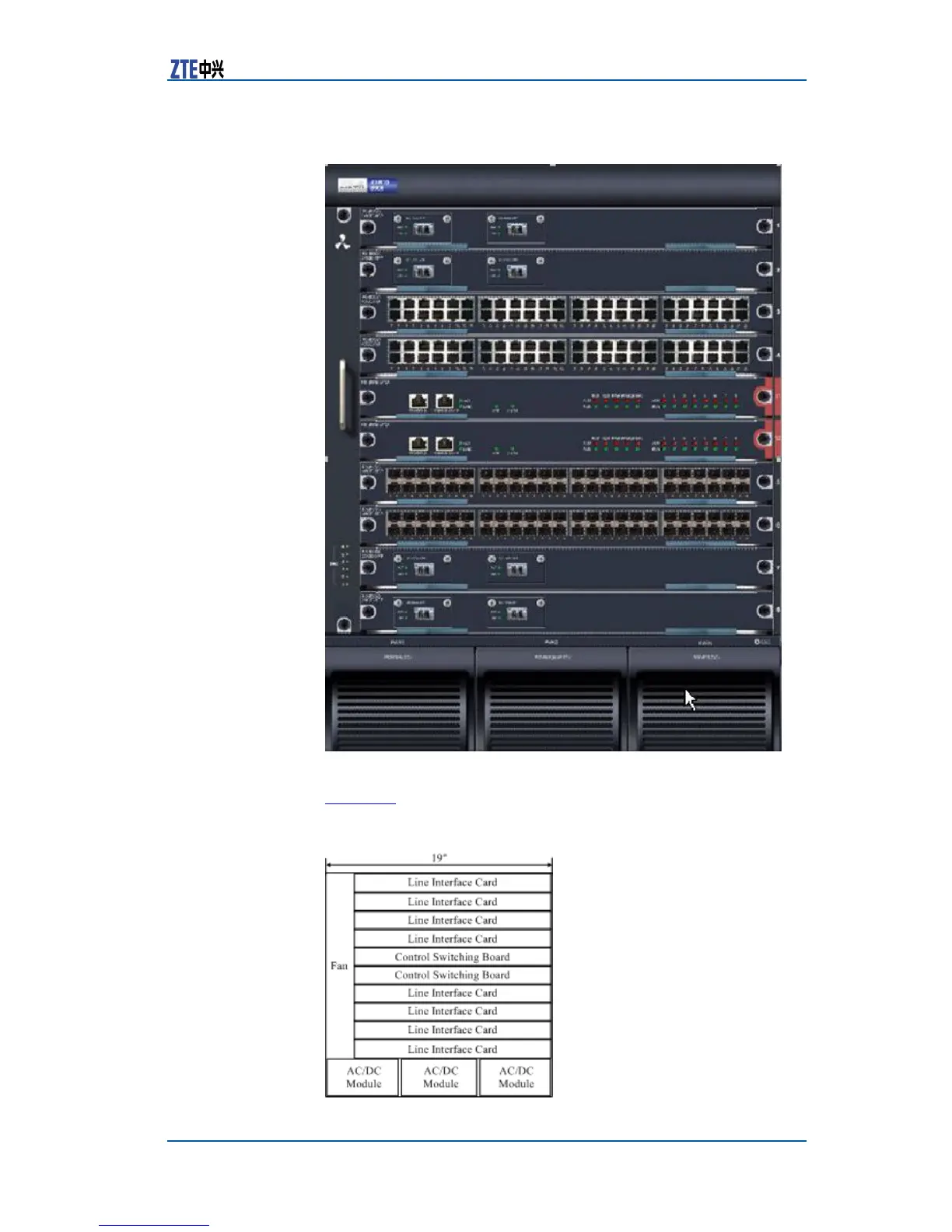

FIGURE13ZXR108908FRONTPANEL
CorrespondingstructureofZXR108908frontpanelisshownin
Figure14.
FIGURE14ZXR108908STRUCTUREDIAGRAM
ConīšædentialandProprietaryInformationofZTECORPORATION19
