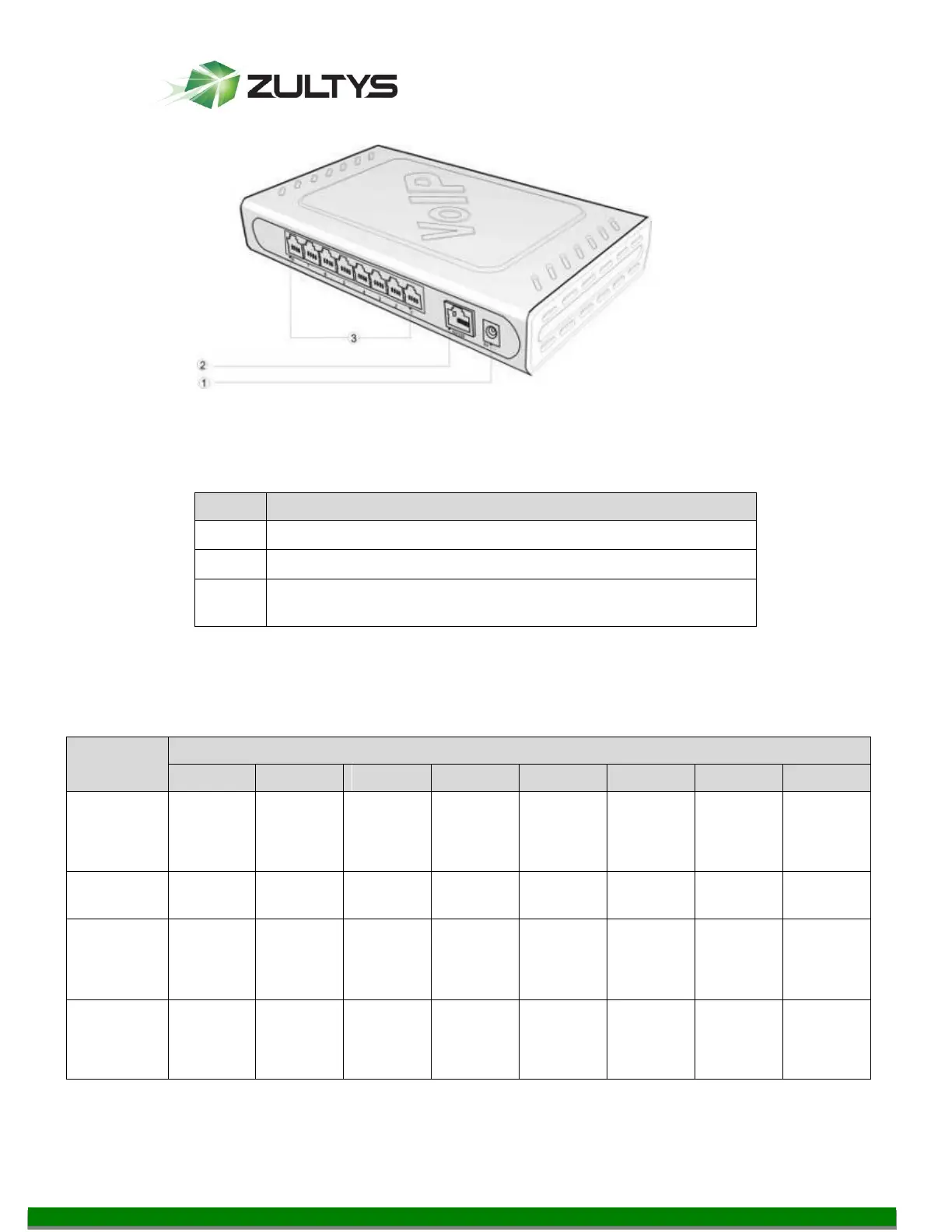

5.2 MG8 Back Panel
5.2.1 Description of MG8 Back Panel
#
Description
①
Power interface, 5-9 VDC input
②
10/100 M Ethernet Interface, RJ45
③
Analog subscriber line (FXS) or analog trunk (FXO)
interface
5.3 Configuration Description of Analog Line Interfaces for All MG8
Models
MG8
Models
RJ11 Interface Configuration
1
2
3
4
5
6
7
8
MG8-4S
Subscrib
er Line 1
Subscrib
er Line 2
Subscrib
er Line 3
Subscrib
er Line 4
NA
NA
NA
NA
MG8-8S
Subscrib
er Line 1
Subscrib
er Line 2
Subscrib
er Line 3
Subscrib
er Line 4
Subscrib
er Line 5
Subscrib
er Line 6
Subscrib
er Line 7
Subscrib
er Line 8
MG8-4FO
Trunk
Line 1
Trunk
Line 2
Trunk
Line 3
Trunk
Line 4
NA
NA
NA
NA
MG8-
8FXO
Trunk
Line 1
Trunk
Line 2
Trunk
Line 3
Trunk
Line 4
Trunk
Line 5
Trunk
Line 6
Trunk
Line 7
Trunk
Line 8
