Description of Printed Circuit Board Connectors

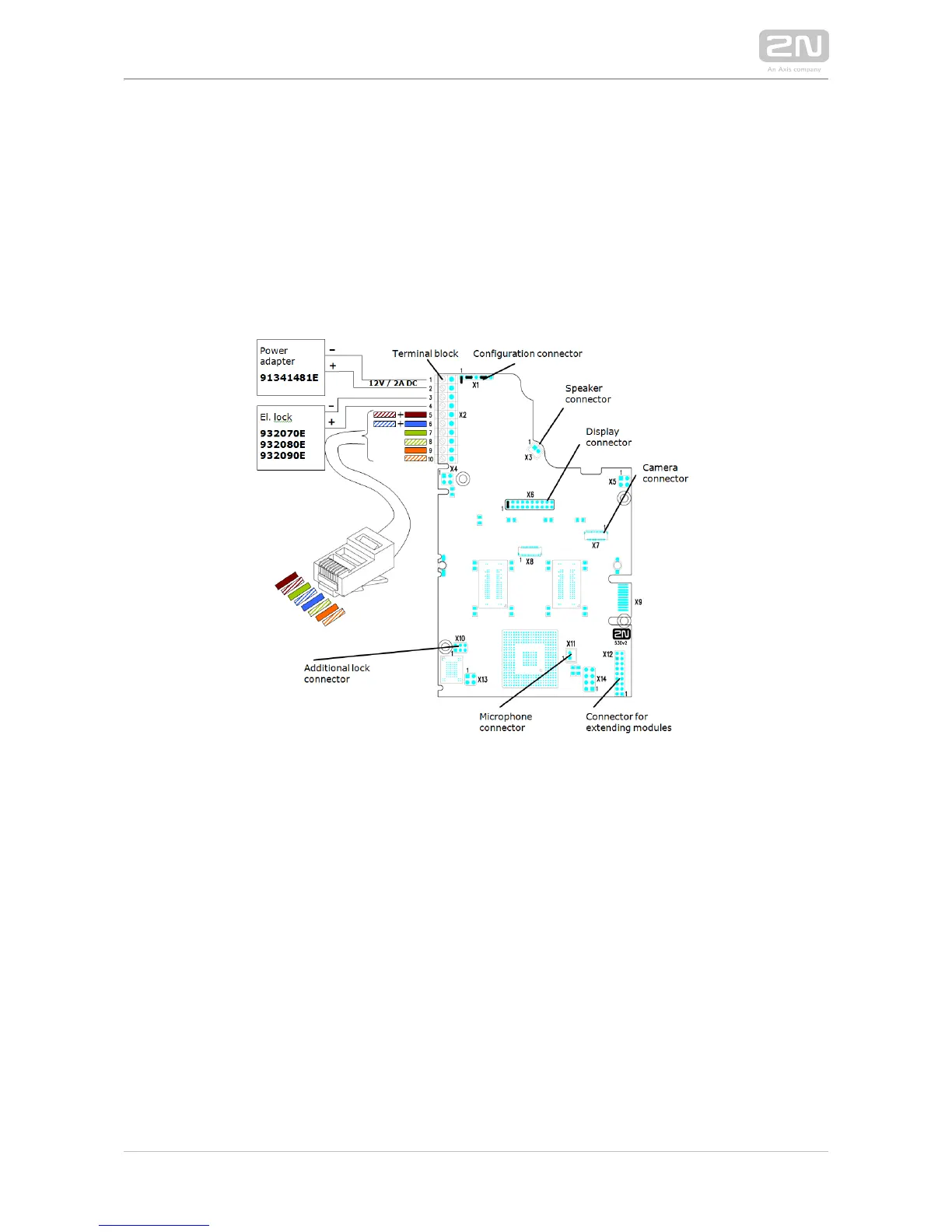

In figure bellow you can see the location of the printed circuit board (PCB)
connectors. Connectors to which the accessories can be connected and connectors
that serve for configuring are indicated on the board. The UTP cable for 2N IP Vario
®
the Ethernet connection is to be connected to the terminal block X2 as shown in table
below. The terminal block can be removed from the PCB. The connection of each of
the connectors is described in the subsections below.
Description of Connectors, PCB Version 530v2
