Configuration Connector Connection
The configuration connector is located in the upper part of the printed circuit board.
Use the configuration jumpers to set whether the lock control relay should have a
normally open or normally closed function and whether it should powered internally or
externally.

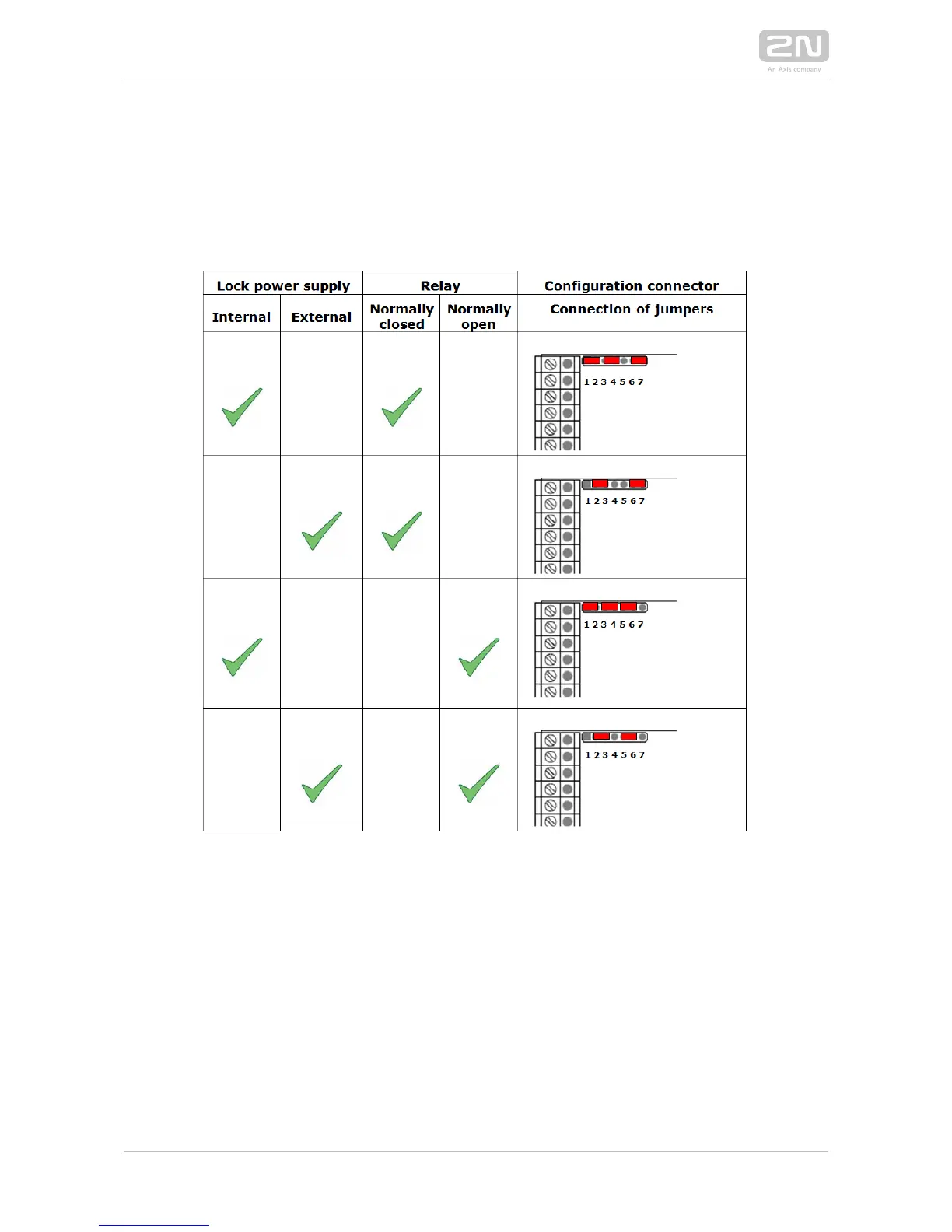

Connection of Configuration Connector Jumpers
Display Connector
The display connector includes the name plate backlighting ON/OFF switching pins
and resetting pins. The remaining pins are intended for display 2N IP Vario
®
connection.
