Understanding the 3Com Web Interface 33

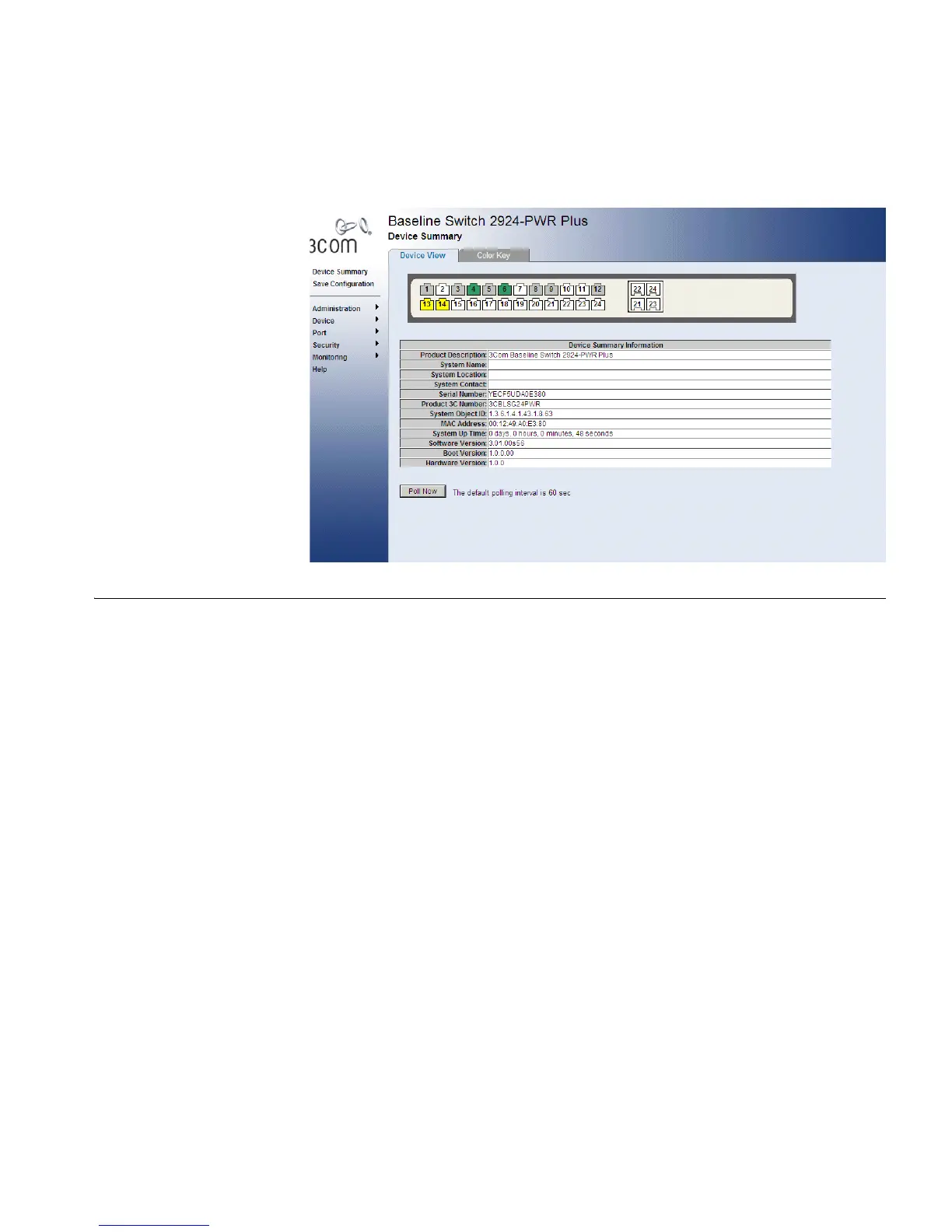

Figure 7 3Com Web Interface Home Page
Understanding the
3Com Web
Interface
The 3Com Web Interface Home Page contains the following views:
■ Tab Vi e w — Provides the device summary configuration located at
the top of the home page.
■ Tree View — Provides easy navigation through the configurable
device features. The main branches expand to display the
sub-features.
■ Port Indicators — Located under the Device View at the top of the
home page, the port indicators provide a visual representation of the
ports on the front panel.
