Defining Access Control Lists 81

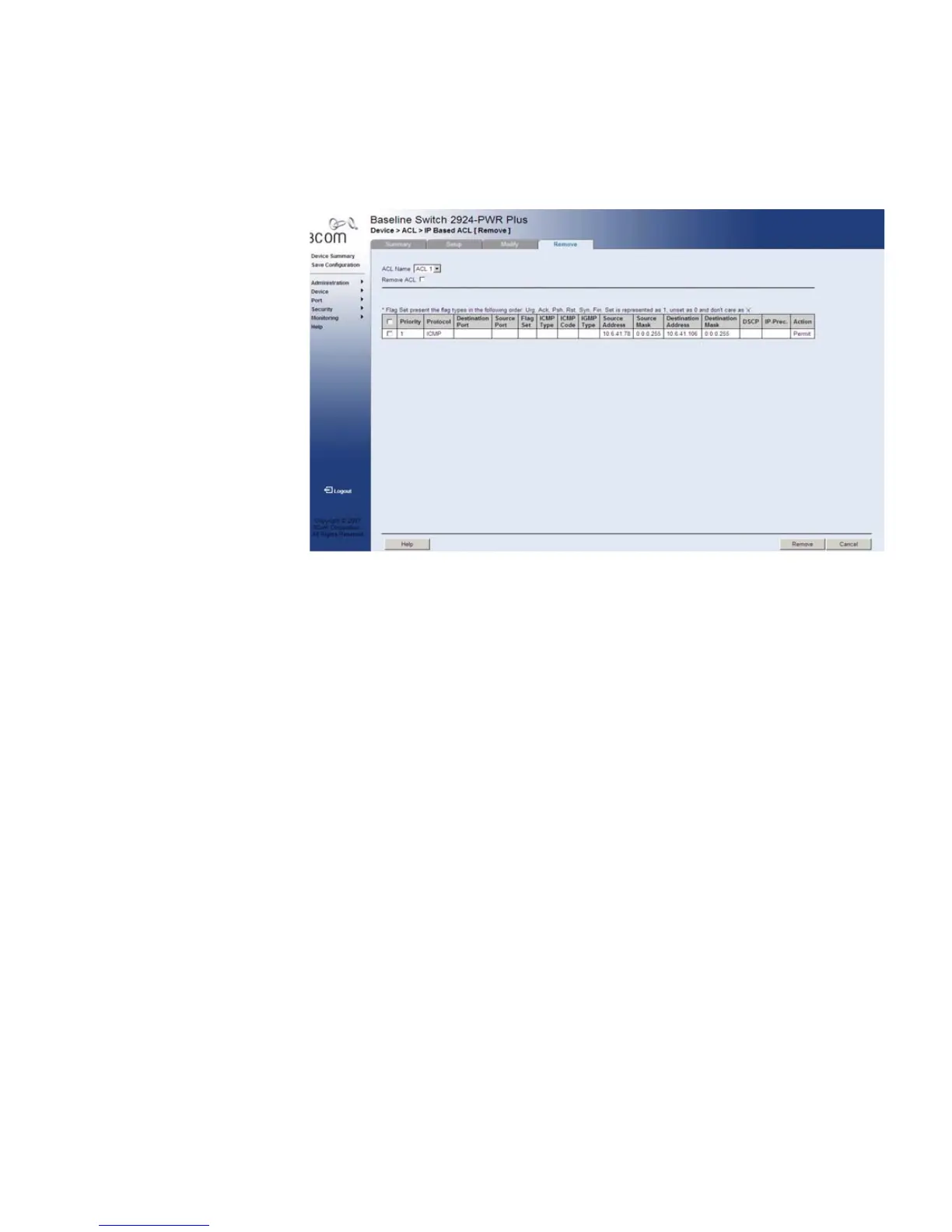

Figure 34 IP Based ACL Remove Page
The IP Based ACL Remove Page contains the following fields:
■ ACL Name — Selects an ACL name from a list of the IP-based ACLs.
■ Remove ACL — Enables the ACL to be removed.
■ Checkbox (unnamed) — When checked, selects the rule for removal.
The top checkbox is used to select all rules for removal.
■ Priority — Indicates the ACL priority, which determines which ACL is
matched to a packet on a first-match basis. The possible field values
are 1-2147483647.
■ Protocol — Indicates the protocol in the rule to which the packet is
matched.
■ Destination Port — Displays the TCP/UDP destination port.
■ Source Port — Displays the TCP/UDP source port to which the ACL is
matched.
■ Flag Set — Indicates the TCP flag matched to the packet.
■ ICMP Type — Indicates the ICMP message type for filtering ICMP
packets.
■ ICMP Code — Indicates the ICMP message code for filtering ICMP
packets. ICMP packets that are filtered by ICMP message type can also
be filtered by the ICMP message code.
■ IGMP Type — Indicates the IGMP message type filter.
