CHAPTER 16: MANAGING DEVICE DIAGNOSTICS
180
Select port — Selects the port for mirroring or monitoring.
A port unavailable for mirroring is colored grey.
Summary — Displays the current monitor and mirror ports.
The fields displayed are:
Monitor — Displays the monitor port.
Mirror In — Displays ports that are monitored on the RX.
Mirror Out — Displays ports that are monitored on the TX.
2 Select a port type.
3 If the Mirrored port type is selected, select Mirror In or Mirror Out.
4 Select the ports to be monitored.
5 Click Apply. Port mirroring is enabled, and the device is updated.
The Port Mirroring Remove Page permits the network manager to
terminate port mirroring or monitoring.
The monitor users have no access to this page.
1 Click Monitoring > Port Mirroring > Remove. The Port
Mirroring Remove Page opens.

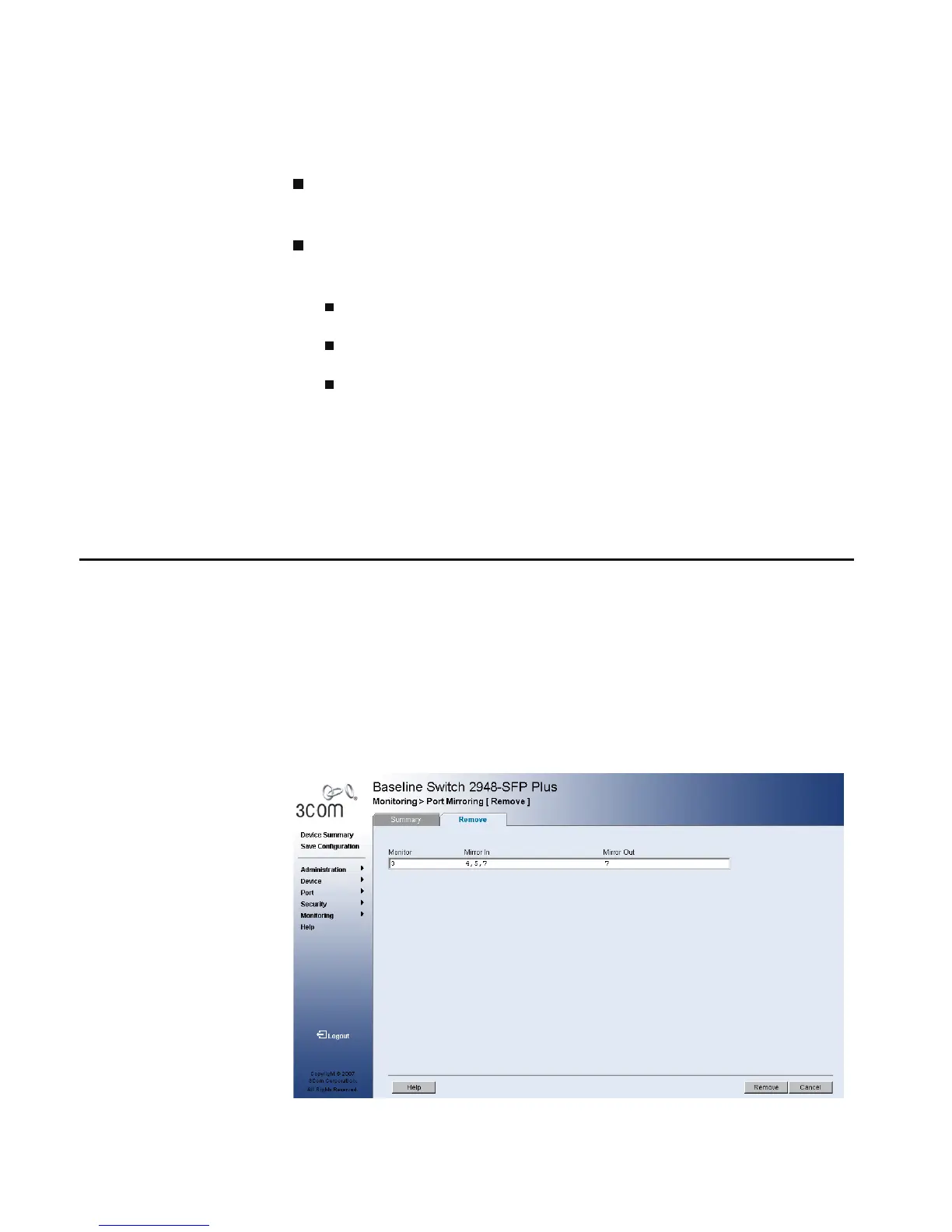

Figure 100 Port Mirroring Remove Page
Removing Port
Mirroring
