3DGence DOUBLE P255 | version 09.2018

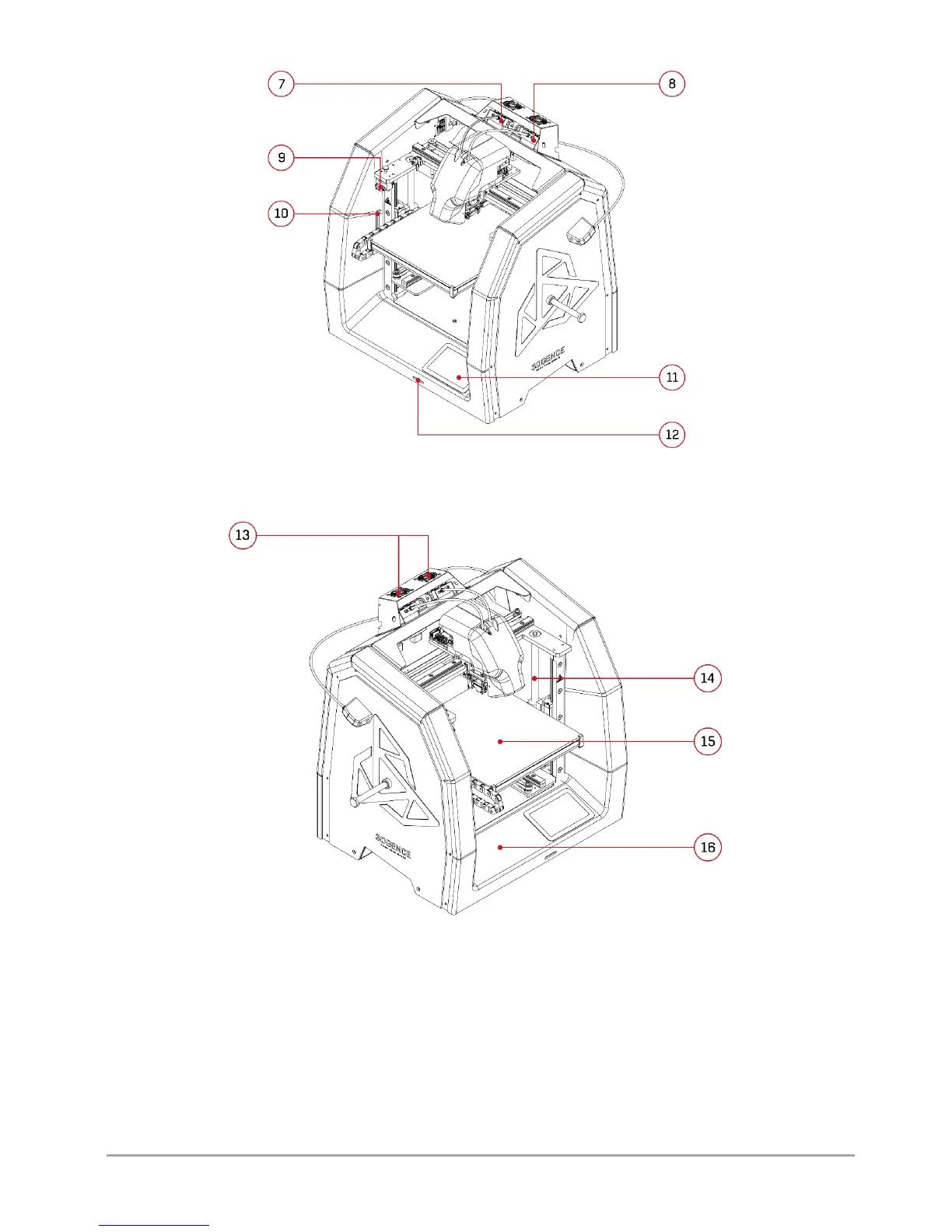

Fig. 8 3DGence DOUBLE P255 printer - front isometric projection:
7. Extruder T0 | 8. Extruder T1 | 9. Z axis endstop
10. Z axis breaker | 11. Display | 12. SD card slot
Fig. 9 3DGence DOUBLE P255 printer - front isometric projection:
13. Extruder cooling fans | 14. Trapezoid bolt | 15. Heatbed
16. Cable carrier (Y axis)
