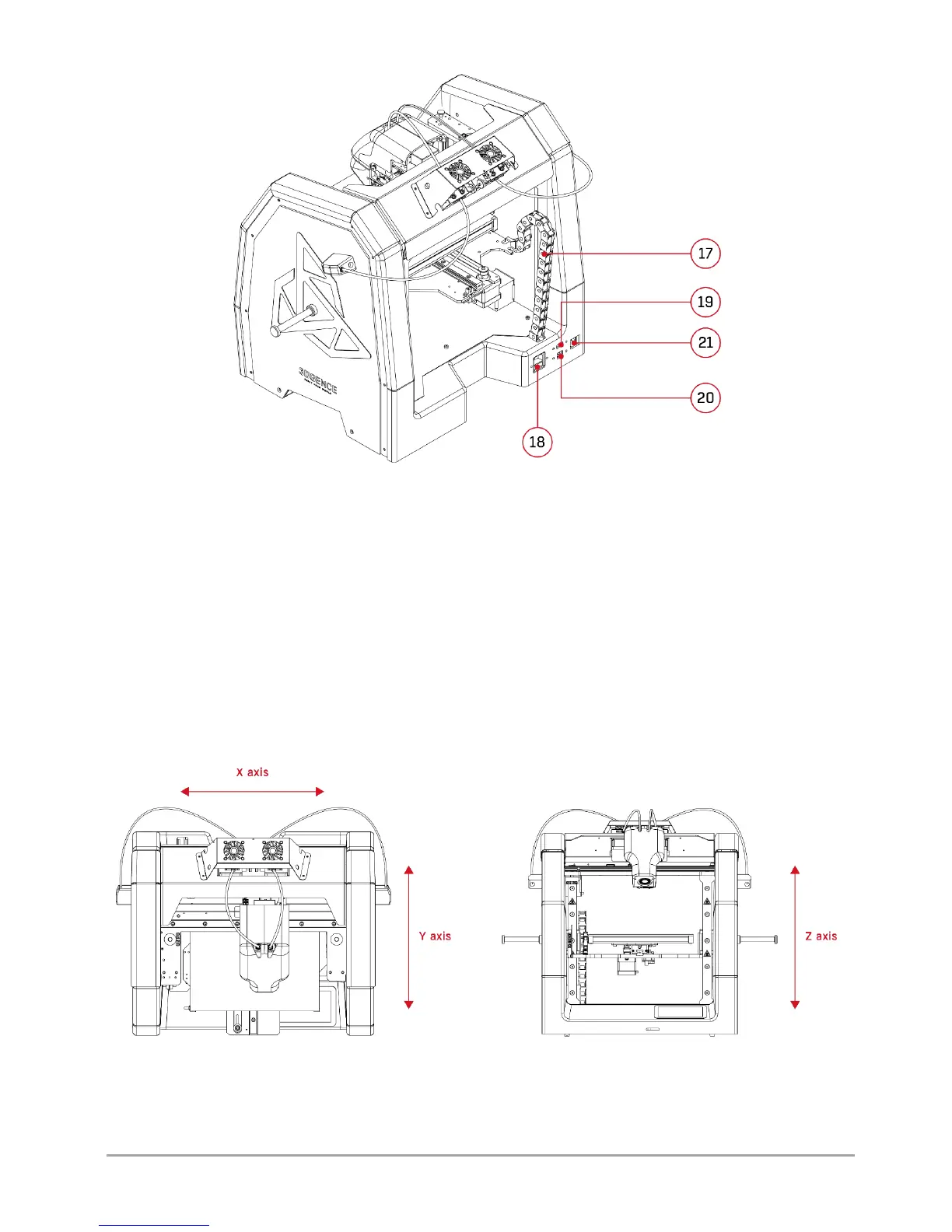

Fig. 10 3DGence DOUBLE P255 printer - rear isometric projection:
17. Cable carrier (Z axis) | 18. Mains power supply socket
19. USB port A | 20. USB port B | 21. Printer switch
1.1. Kinematic system
The printer works in the Cartesian robot's kinematics. The dual hotend module moves along X axis (to the left - to the right).
The printer's heatbed moves along Y axis (forwards – backwards) and along Z axis (up – down). The designation of the printer
axes is shown in fig. 11. Dimensions of available printer's working space:
X: 190 mm,
Y: 255 mm,
Z: 195 mm.
Printed object must not exceed the above dimensions. The printer's software will prevent an attempt to generate a file that
exceeds the maximum dimensions, but these dimensions must be considered when designing the model for printing.
Fig. 11 Designation of 3DGence DOUBLE P255 printer axes
