EAP200 Enterprise Access Point ENGLISH
27
Copyright © 4IPNET, INC.
• None: Authentication is not required and data is not encrypted during transmission when this option is
selected. This is the default setting as shown in the following figure.

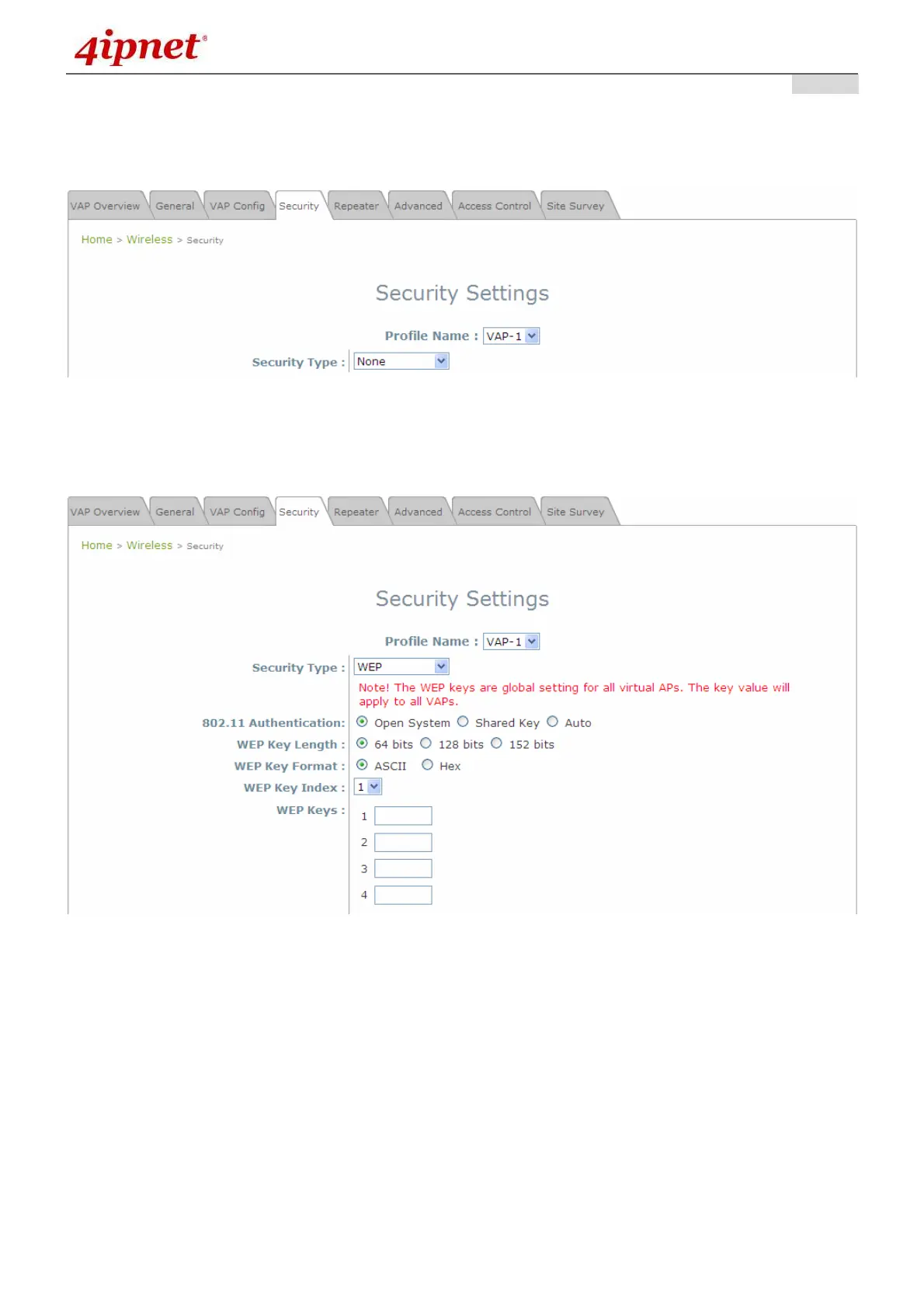

Security Settings: None
• WEP: WEP (Wired Equivalent Privacy) is a data encryption mechanism with key length selected from
64-bit, 128-bit, or 152-bit.
Security Settings: WEP
 802.11 Authentication: Select from Open System, Shared Key, or Auto.
 WEP Key Length: Select from 64-bit, 128-bit, 152-bit key length.
 WEP Key Format: Select from ASCII or Hex format for the WEP key.
 WEP Key Index: Select a key index from 1 through 4. The WEP key index is a number that
specifies which WEP key is used for the encryption of wireless frames during data transmission.
 WEP Keys: Provide the pre-defined WEP key value; the system supports up to 4 sets of WEP
keys.
