6. Create a WDS Bridge between two APs
WDS link creation will assist to extend network coverage where running wires is not an option, effectively
transferring the traffics to the other end of WLAN/LAN through the EAP200. Since this is a peer to peer
connection, both EAP200s will be configured by the same way.
Step 1: Make sure the Band and Channel are matched between the WDS peers
In order to create a valid WDS link, the two EAP200s must be configured to use the same channel
and band for their wireless settings. Click the Wireless icon and then General tab to go to the
following page.

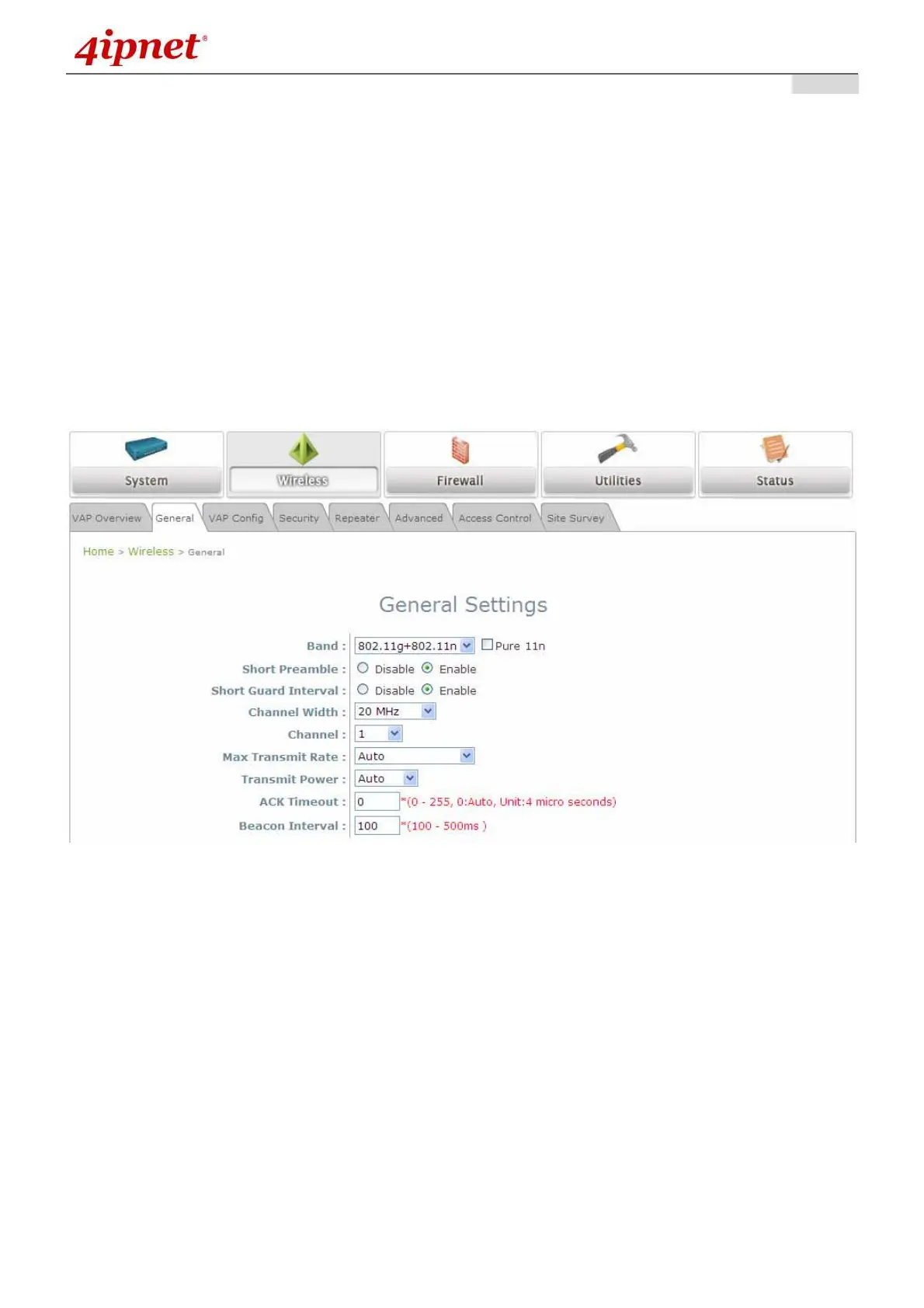

Wireless General Settings Page
Please make sure both APs are using the same Band and Channel in order to establish a successful
WDS link. Click SAVE if any changes have been made.
