Installing MX-ONE

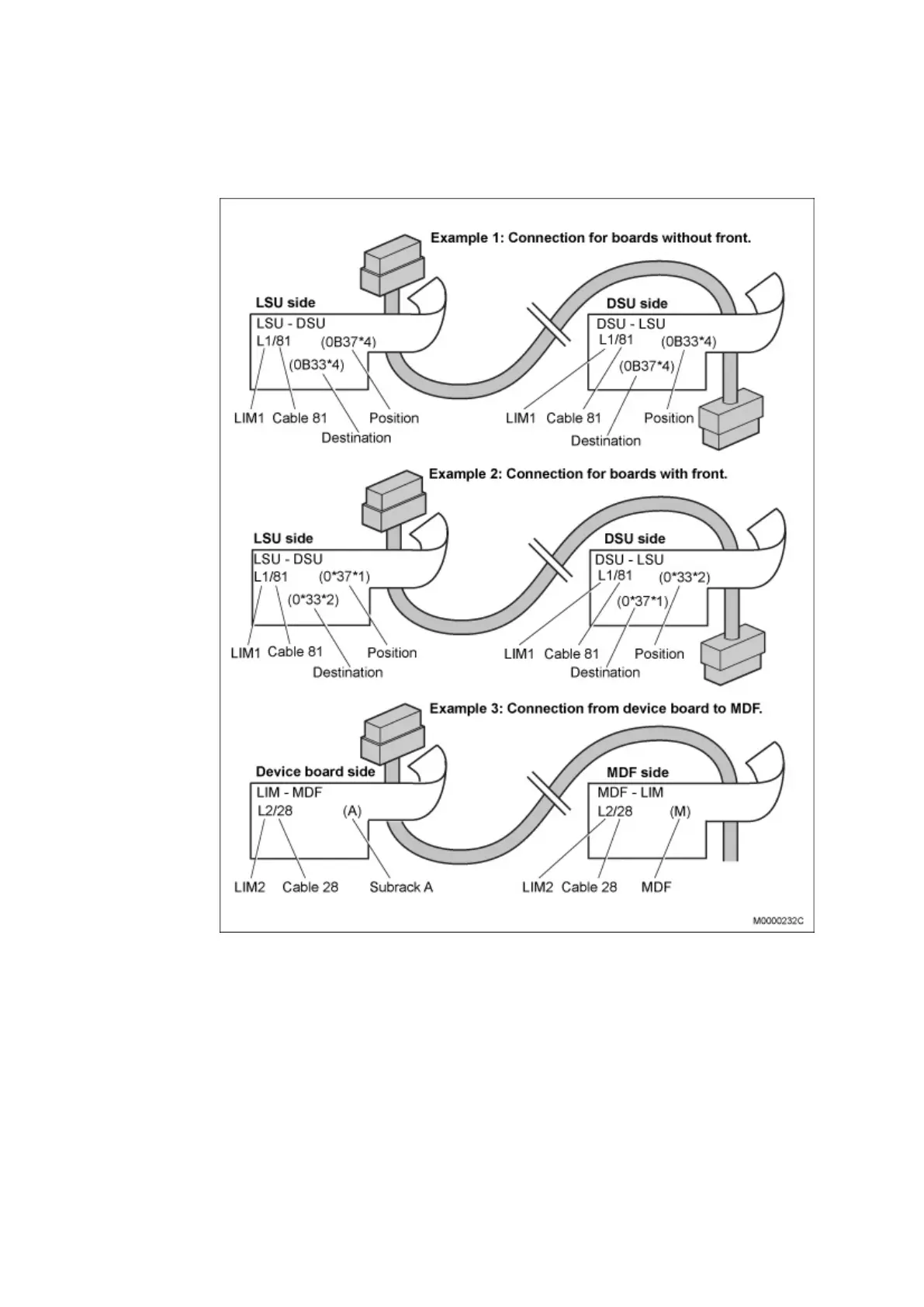

Figure 68 Cable Label Examples
5.3.4 Labelling of Internal Cables
The internal cables connected to fixed positions in the exchange are already
labelled at delivery. The label indicates the position of the cable’s own
connector as well as that of the other end.
For example: L1/81 (0*37*4) means that for LIM 1, cable 81 is to be placed in
magazine 0 (0,1,2, or 3), board position 37 (01, 05, 09,..., 77), and at connector
4, counted from the bottom. See Page 89.
88
6/1531-ASP 113 01 Uen J2 2008-07-17
