CHARGING SYSTEM FAILURE
Any faults during charging are displayed by the LEDs, either steady or flashing, located on the front of the charge status control unit.
Refer to the table below.
GREEN LED
(Power)
BLUE LED
(Charging)
YELLOW LED
(Temperature)
RED LED
(Fault)

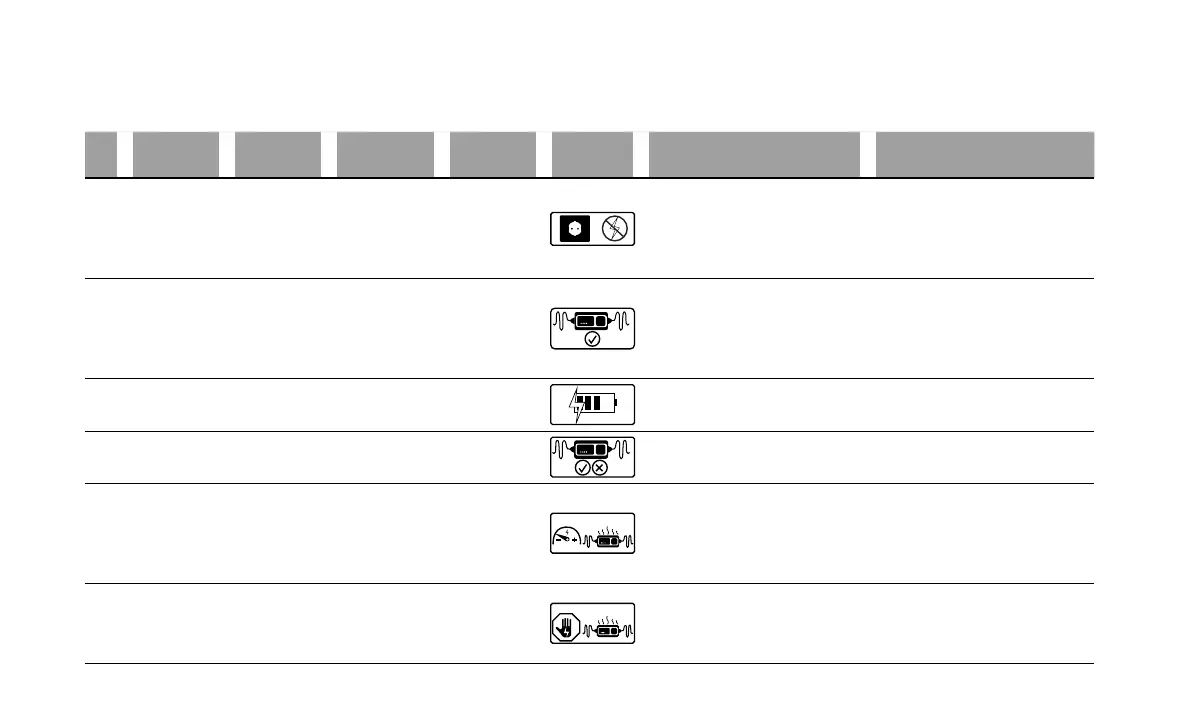

Symbol Description Action / Consequence
1 OFF OFF OFF OFF
Charging cable not connected
to the domestic charging
port or power failure in the
domestic power distribution
system
2 ON OFF OFF OFF
There are no faults in the
domestic power distribution
system, so the charging cable
can be connected to the
charging port on the vehicle
3ON
ON
(Blinking)
OFF OFF
High-voltage battery charging
in progress
4ONONONON
The control unit is performing
an internal test
5ON
ON
(Blinking)
ON OFF
Charge to a lower level due
to an overtemperature of the
control unit or the charging
port of the domestic power
distribution system
6 ON OFF ON OFF
Overheating of the control unit
If an acceptable temperature
is reached after 5 minutes, the
system will attempt to charge
again.
