Abarth 500e - Charging

157
CHARGING
150)
49) 50) 51) 52) 53) 54) 55) 56) 57)
WARNING
Before charging the high voltage
battery, it is recommended to turn
the ignition device to STOP in order
to obtain a charge until full in the
shortest period possible.
WARNING The brake calliper lock
is activated during the charging
procedure: unlocking will be carried out
automatically at the end of the charging
procedure.

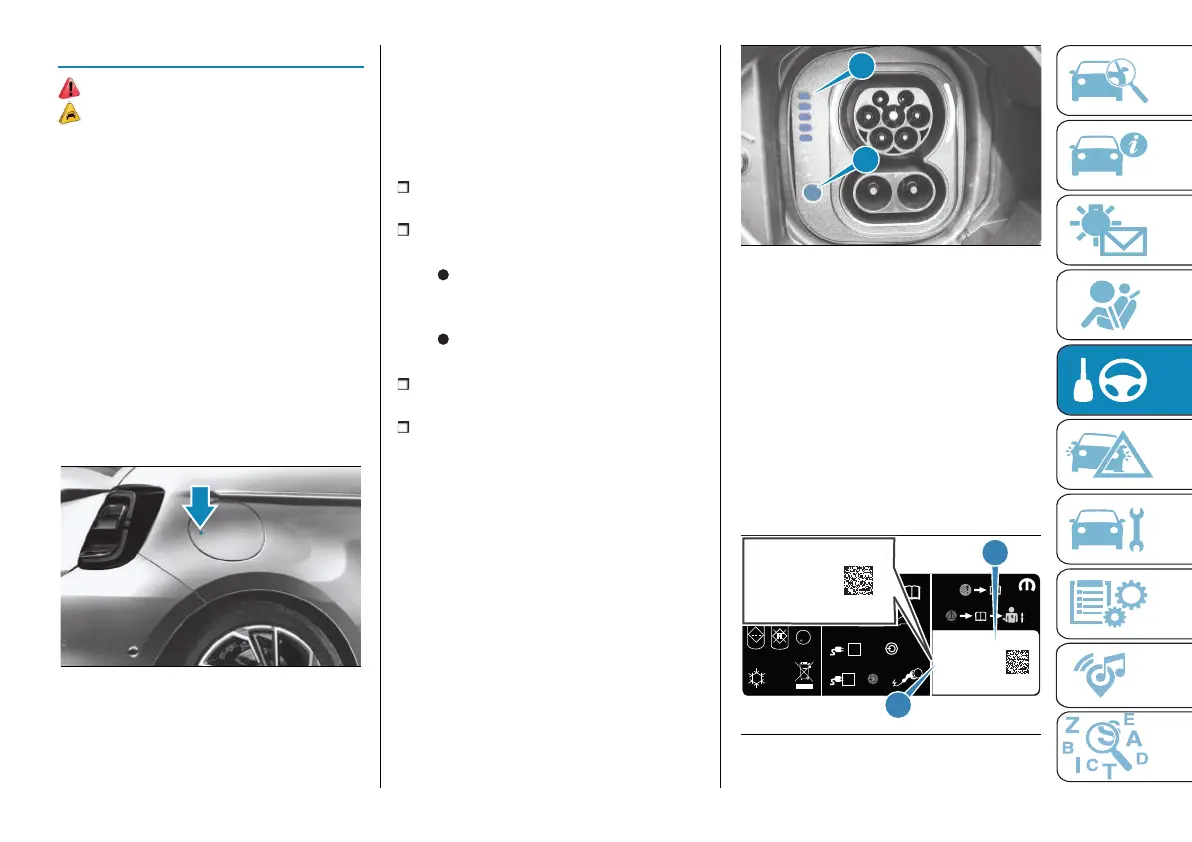

CHARGING PORT ON
THE CAR
147 AB0A0533
To access the charging port, open the
charging flap fig. 147 by pressing on
the area indicated by the arrow.
Charging port LED
Next to the charging port there are
some LEDs (A) fig. 148 that indicate
the charging status by means of four
different colours and related flashing
types:
Blue: to indicate that the system is
waiting for a scheduled charging.
Green flashing: ("Flashing"): during
the charging process:
one flashing green LED
indicates that charging is in
progress;
all 5 green LEDs flashing:
charging process initialisation;
Steady green: to indicate that the
charging process is complete.
Red blinking: to indicate a fault in
the charging system or when there
is a fault in the charging procedure
(e.g. when the charging connector is
connected to the charging port located
on the car and the cable has not been
previously connected to the power
socket).
WARNING If all the LEDs are off after
connecting the charging connector to
the charging port on the car, a problem
may have occurred during the process.
In this case it is advisable to press
button (B) in fig. 148 and disconnect
the charging connector and reconnect
it.
A
B
148 F0S1367
WARNING Use only the charging cable
supplied with your car: for the Mode
2 charge cable refer to the label on
the control unit, which indicates the
"Country Group" (A) fig. 149 and the
electrical current intensity (Ampere) (B)
and the table "Mode 2 Cable Variants
in the "Power sources that can be
used" chapter) or a replacement cable
recommended by FCA.
25
i
i
i
PLEASE READ MANUAL BEFORE USE
50 Hz
30mA
6mA
n
n AC
DC
RCD:b
EU-GEN4.1-CHARGECORD
MOPAR
35344729
46345793
13A / 230VAC
LNSE SINGLE PHASE
004634579300F2350000119182
E346031
COUNTRY GROUP 1
EU-GEN4.1-CHARGECORD
F235
LR67 - ICCB
IC-CPD
PE
FUNCTIONAL
SAFETY
EU
U
L
R
35344729
46345793
13A / 230VAC
LNSE SINGLE PHASE
004634579300F2350000119182
E346031
COUNTRY GROUP 1
EU-GEN4.1-CHARGECORD
F235
A
B
149 F0S1055
