“FAST CHARGE”
CHARGING
PROCEDURE FROM
PUBLIC CHARGING
STATION (DC) MODE
4
67) 68) 69) 70) 71) 72)
The high-voltage battery of the car can
be charged by directly connecting the
charging cable of DC (direct current)
public charging stations.
To charge, proceed as follows:
park the car safely (transmission in
position "P" - Park);
engage the electric parking brake;
turn the ignition device to the STOP
position;
take the charging cable from the
charging station;
remove any dust that may have built
up on the charging connector and on
the charging port;

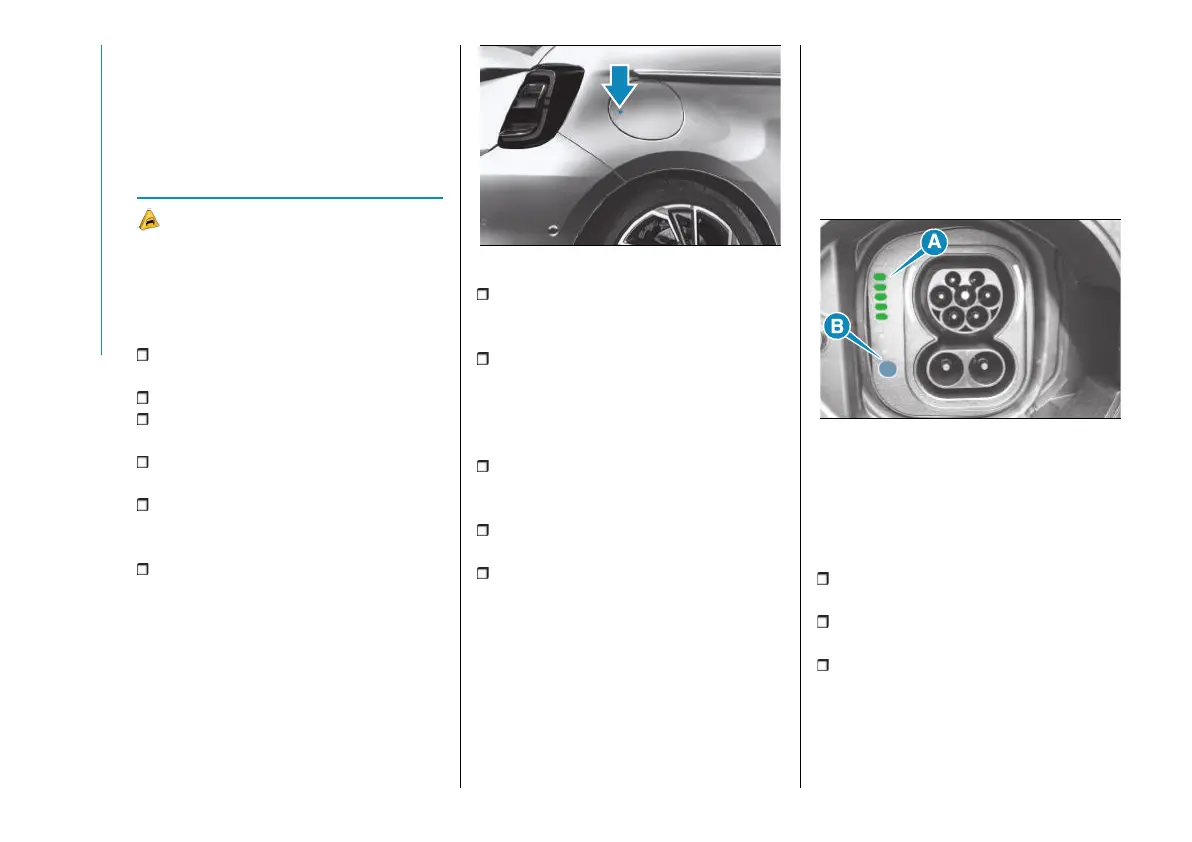

open the charging flap fig. 175 by
pressing on the area indicated by the
arrow;
175 AB0A0533
remove the protective cover of the
charging port and attach it to the
device;
grasp the charging cable, hold the
first charging connector and insert it
into the charging port on the car until
you hear a click indicating that it is
locked;
the 5 LEDs with a steady green light
will light up momentarily to indicate the
correct insertion of the plug;
lock the doors by pressing the button
on the key;
charging starts automatically.
If necessary, the public charging
station must be enabled; follow the
manufacturer's instructions and
warnings when using the charging
station;
END OF CHARGING
PROCEDURE
The charging procedure ends when all
the LEDs (A) fig. 176, located next to
the charging port, will light up steady
green (during the charging phase, on
the other hand, the LEDs will light up
flashing/fixed green according to the
state of charge of the battery portion
indicated by the LED. The fixed green
light indicates that the battery portion is
fully charged).
176 F0S1220
DISCONNECTING THE
"MODE 4" CHARGING
CABLE
To complete the charging, proceed as
follows:
unlock the doors of the car allowing
the charging cable to unlock;
if charging is in progress, press
button (B) fig. 176 on the charging port;
disconnect the cable from the
charging port of the car and put the
protective cover (where provided) back
on the connector;
