181
of the battery portion indicated by the
LED. The fixed green light indicates that
the battery portion is fully charged.
NOTE The charging procedure is
interrupted when opening the bonnet:
a dedicated message will be shown
on the instrument panel display. The
charge will be reactivated when the
bonnet is closed correctly.
NOTE In some countries the "Mode 3"
cable is not available.
WARNING Always connect the
connector first to the socket on the
public charging station and then to the
car.
WARNING Before leaving the car, it is
advisable to lock the doors by pressing
the button on the key. If it is not
possible to lock the doors by pressing
the button on the key, lock the
doors by pressing the button on the
driver's side door handle.
END OF CHARGING
PROCEDURE
The charging procedure ends when all
the LEDs (A) fig. 174, located next to
the charging port, will light up steady
green (during the charging phase, on
the other hand, the LEDs will light up
flashing/fixed green according to the
state of charge of the battery portion
indicated by the LED. The fixed green
light indicates that the battery portion is
fully charged).

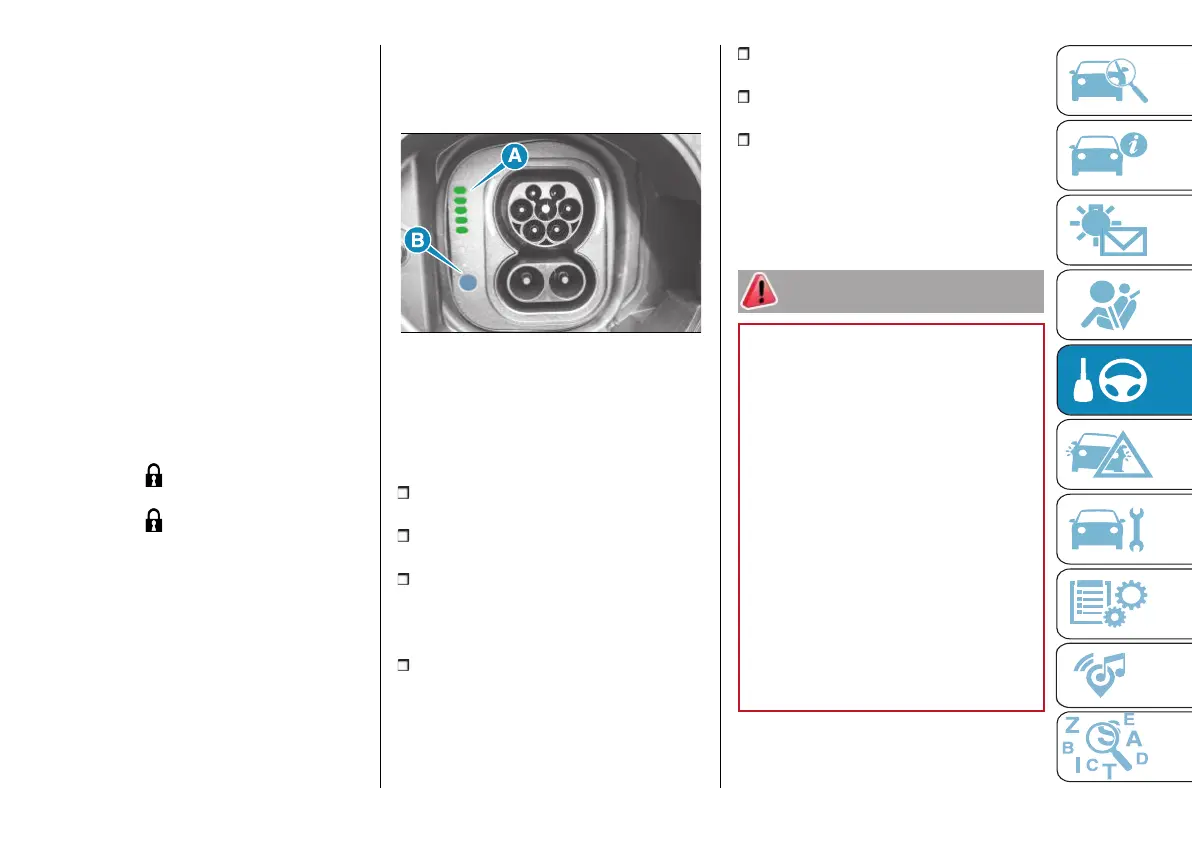

174 F0S1220
DISCONNECTING THE
"MODE 3" CHARGING
CABLE
To complete the charging, proceed as
follows:
unlock the doors of the car allowing
the charging cable to unlock;
if charging is in progress, press
button (B) fig. 174;
disconnect the cable from the
charging port of the car and put the
protective cover (where provided) back
on the connector;
unplug the cable from the charging
port on the public charging station
and put the protective cover (where
provided) back correctly on the two-
colour connector;
replace the protective cover of the
charging port;
close the charging flap, making sure
it locks properly;
roll up the charging cable correctly,
repositioning the protective covers on
both sides of the cable correctly (take
care not to damage the cable when
rolling it up). Then store the cable.
WARNING
189)
The charging current level ("Level 1"
/ "Level 2" / "Level 3", etc.) can only be
changed using the
Uconnect™
system
display (see "Settings" in the"Vehicle
mode" paragraph in the "Multimedia"
section). The default charge level set is
"Level 3". The set level applies indifferently
to both AC home charging (Mode 2) and
charging from an AC public charging
station (Mode 3). It is therefore always
advisable to check that the level is set as
desired for the actual charging type that is
about to be carried out.
190)
The high-voltage battery must only
be charged through approved, earthed
domestic sockets or at a public charging
station using the supplied Mode 3
charge cable (for versions/markets where
provided).
191)
Keep the charging flap closed when
the charging port is not in use.
