Abarth 500e - Fix&Go Kit; Fuses

IN AN EMERGENCY
200
FUSES
196) 197) 75)
WARNING
196) Replacement of a fuse. All work
may be performed only by a Dealership
or a qualified repair workshop. The
replacement of a fuse by a third party may
cause a serious car fault.
197) Installation of electrical
accessories. The electrical circuit in the
car is designed to function with standard
or optional equipment, so contact a
Dealership or a qualified repair workshop
before installing other electrical equipment
or accessories in the car.
IMPORTANT
75) FCA shall not be held liable for
expenses resulting from car repair or
anomalies resulting from the installation
of accessories not provided or
recommended by Abarth and not installed
according to specifications, in particular
when the combined consumption of all
additional equipment connected exceeds
10 mA.
FIX&GO KIT
(where provided)
198) 199) 200) 201) 202) 203) 204) 205)
76) 77)
6)
The car may be equipped with a
different Fix&Go (Kit OPT1 or Kit OPT2)
according to the version.
Preliminary operations
Proceed as follows:
stop the car in a position that is not
dangerous for oncoming traffic where
you can change the wheel safely. The
car must be stopped in a lay-by, car-
park or parking or service area, and the
ground must be as level as possible
and sufficiently compact;
turn the ignition device to the OFF
position, apply the electric parking
brake and shift the gear to position P or
R;
steer the wheels completely;
in the event of a steep slope, place a
wedge or stone behind the wheels;
before getting out of the car, put on
the reflective safety jacket (if required
by the regulations in force). In any case,
follow the road safety laws in force in
the country where you are driving;
make sure that any passengers get
out of the car and go to a safe place
where they will not obstruct traffic or
be exposed to the risk of injury. In the
event of a puncture, change the tyre
in accordance with the laws of the
country in which you are travelling.
OPT1 KIT DESCRIPTION
206)
The Fix&Go is located in the boot.
To access Fix&Go open the tailgate.

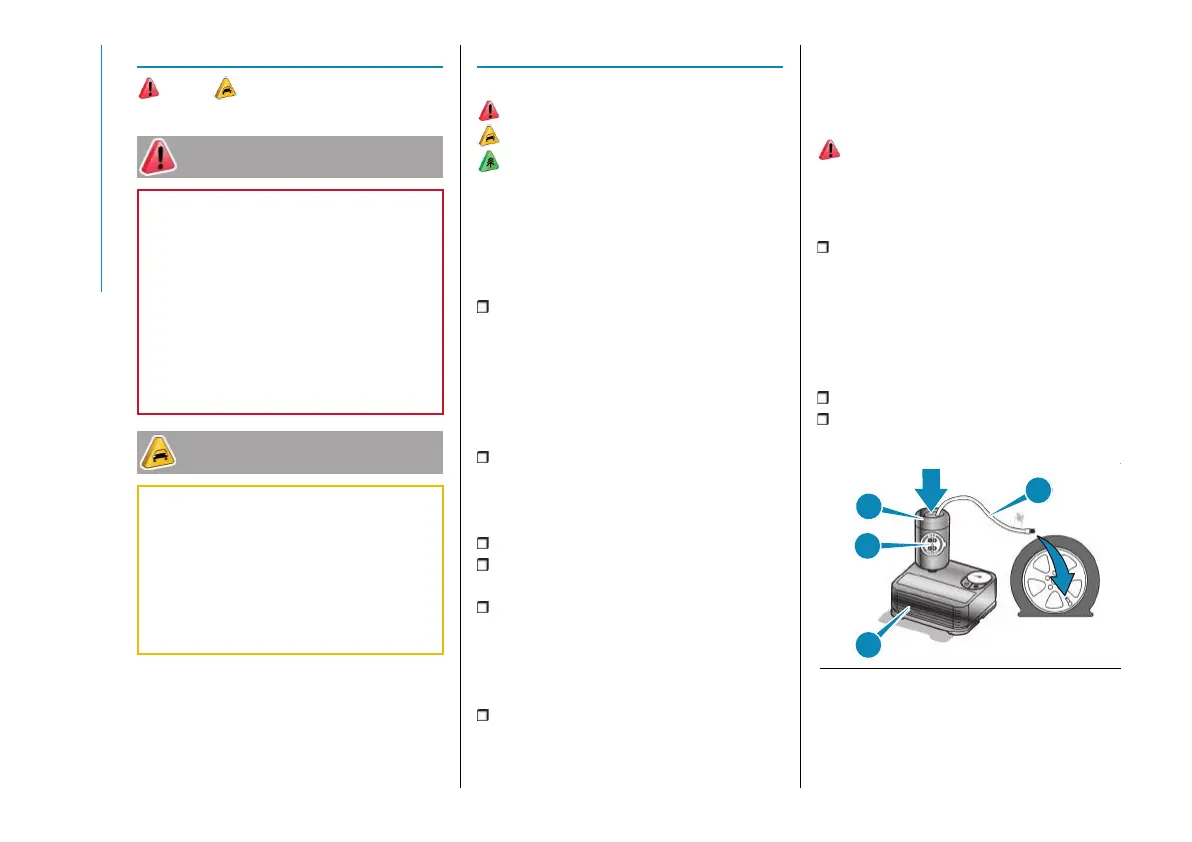

The Fix&Go fig. 193 includes:
one cartridge (A) containing sealant
and fitted with: transparent tube for
injecting the sealant (D) and sticker (C)
with the wording MAX. 80 km/h / 50
mph to be applied in a clearly visible
position (e.g. on the dashboard) after
repairing the tyre;
one compressor (B);
a pair of gloves located in the hose
compartment of the cartridge (D).
A
C
B
D
193 F0S1246
