STARTING AND DRIVING
158

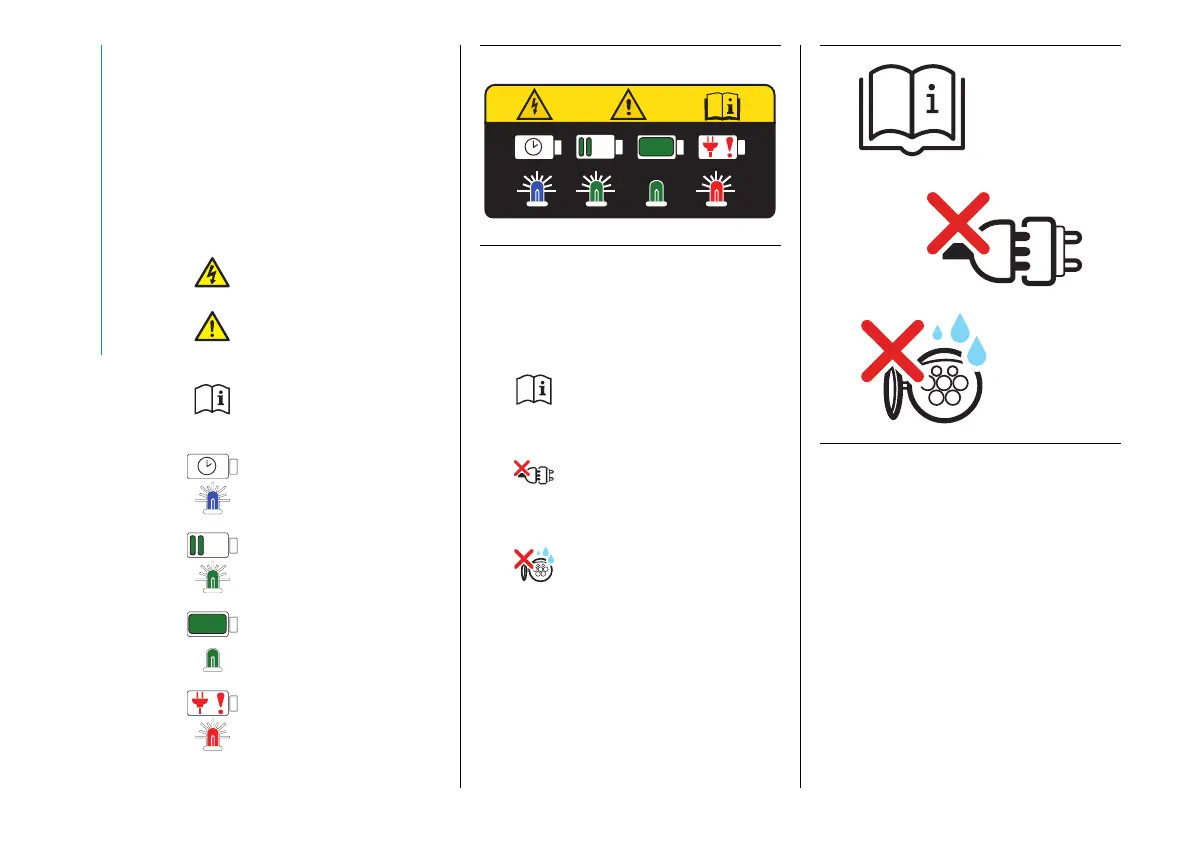

Symbol labels
On the inside of the charging port
flap there are labels with the following
warnings and indications that must be
checked and observed when charging
the high-voltage battery.
On the label, fig. 150, there are the
following symbols:
indicates a risk of
electric shock.
indicates a general
dangerous situation.
indicates to refer
to the descriptions
and figures in this
supplement.
indicates that a
charging timer has
been set.
indicates that the
charging procedure
is in progress.
indicates that the
charging procedure
is complete.
indicates that there is
a fault in the charging
procedure.
150 AB0A0573
On the label, fig. 151, there are the
following symbols:
indicates to refer to the
descriptions and figures in
this supplement.
indicates to not use
extension cords and/or
adapters to carry out the
charging procedure.
indicates that water should
not come into contact with
the charging port on the
car.
151 AB0A0574
The plate at fig. 152 reminds you to
refer to this Owner Handbook for
charging from public AC mains and the
correct order of connection of the
charging cable:
