(A) fig. 82indicating the state of the
wireless charging system:
"Your phone is being charged" blue
LED: this is displayed when the mobile
phone is positioned correctly in the
wireless charging compartment and the
system is activated correctly;
"Phone fully charged" green LED: this
is displayed when the mobile phone
has completed charging its battery (if
suitable to transmit the information);
"Object not allowed" red LED: this
is displayed when a phone that is not
enabled for wireless charging or an
object that is not permitted (e.g. the
ignition key) is placed (e.g. ignition key,
credit card, a coin);
"System error" red LED: this appears
when there is a malfunction in the
wireless charger system;
"System not active" LED off: there
are no objects in the compartment
and/or the ignition device of the car in
the OFF position and/or the doors are
not all closed correctly and the engine
is not on.
WARNING Do not place contactless
cards (RFID), credit cards or metal
objects in the charging compartment.
WARNING Not all mobile phone covers
guarantee the correct charging of
the phone. Check that charging is in
progress after having placed the phone
in the charging compartment.
NOTE The use of multiple wireless
functions on the smartphone at the
same time (Apple CarPlay/Android
Auto and wireless charging), as
indicated by the smartphone
manufacturers, could cause it to
overheat, resulting in a limitation of the
active functions or its turning off. In this
case, it is recommended to connect
the system using the USB socket.
Correct positioning of the mobile
phone
To start charging wirelessly correctly,
make sure your mobile phone is
positioned completely within the green
dotted area in fig. 82 with the display
facing up and that the device does not
cover the alert LED (A).
Correct positioning: see fig. 83 (the
LED identifies the positioning limit of
the device);
incorrect positioning: see fig. 84;

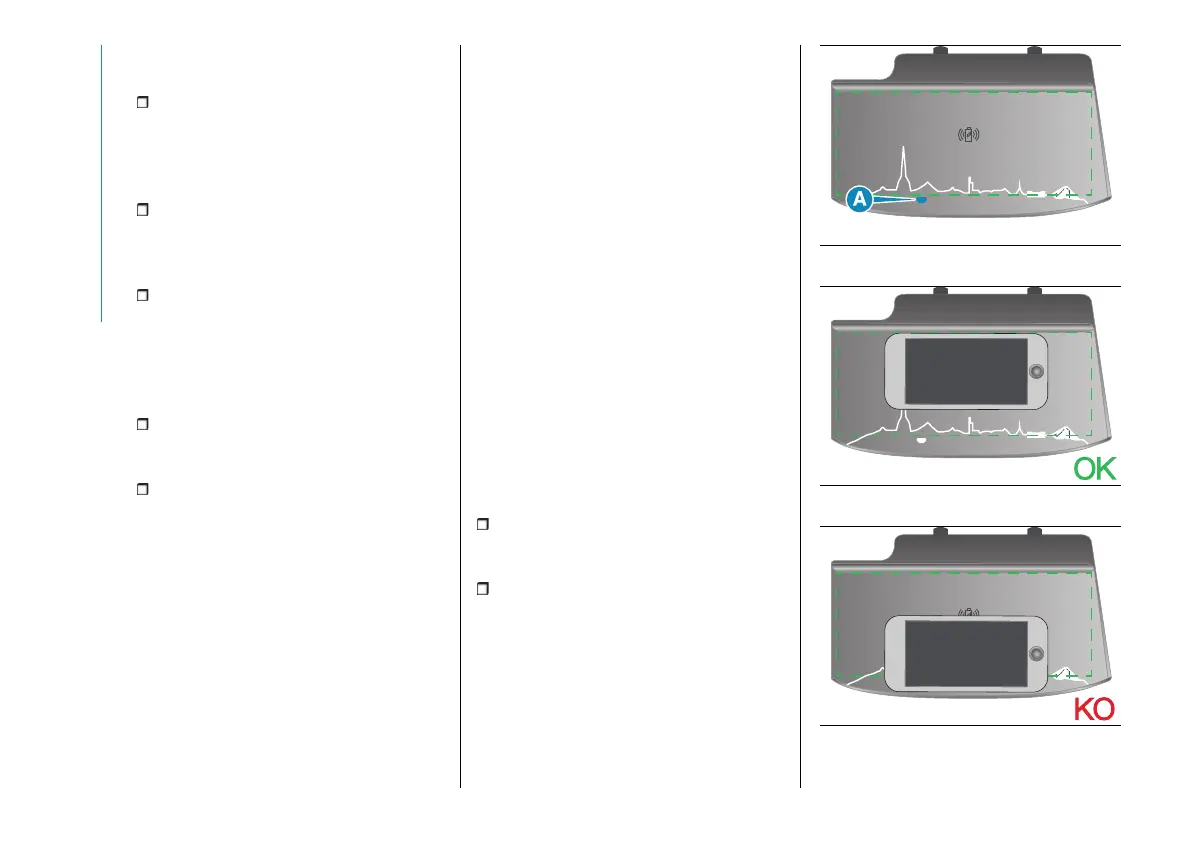

82 F0S1360
83 F0S1361
84 F0S1362
