Commissioning
46 265Gx, 265Ax IM/265Gx/Ax-EN-07
6.9 Operation
6.9.1 Operation using the control buttons on the transmitter
The control unit on the transmitter consists of 2 pushbuttons for setting the "Lower Range
Value" (0 %) and "Upper Range Value" (100 %) parameters, as well as a write protection
switch.
IMPORTANT (NOTE)
No housing entries are required for the pushbuttons or switch.
To access the pushbuttons, the screw must be slackened and the protective cap moved to one
side (see Fig. 18).

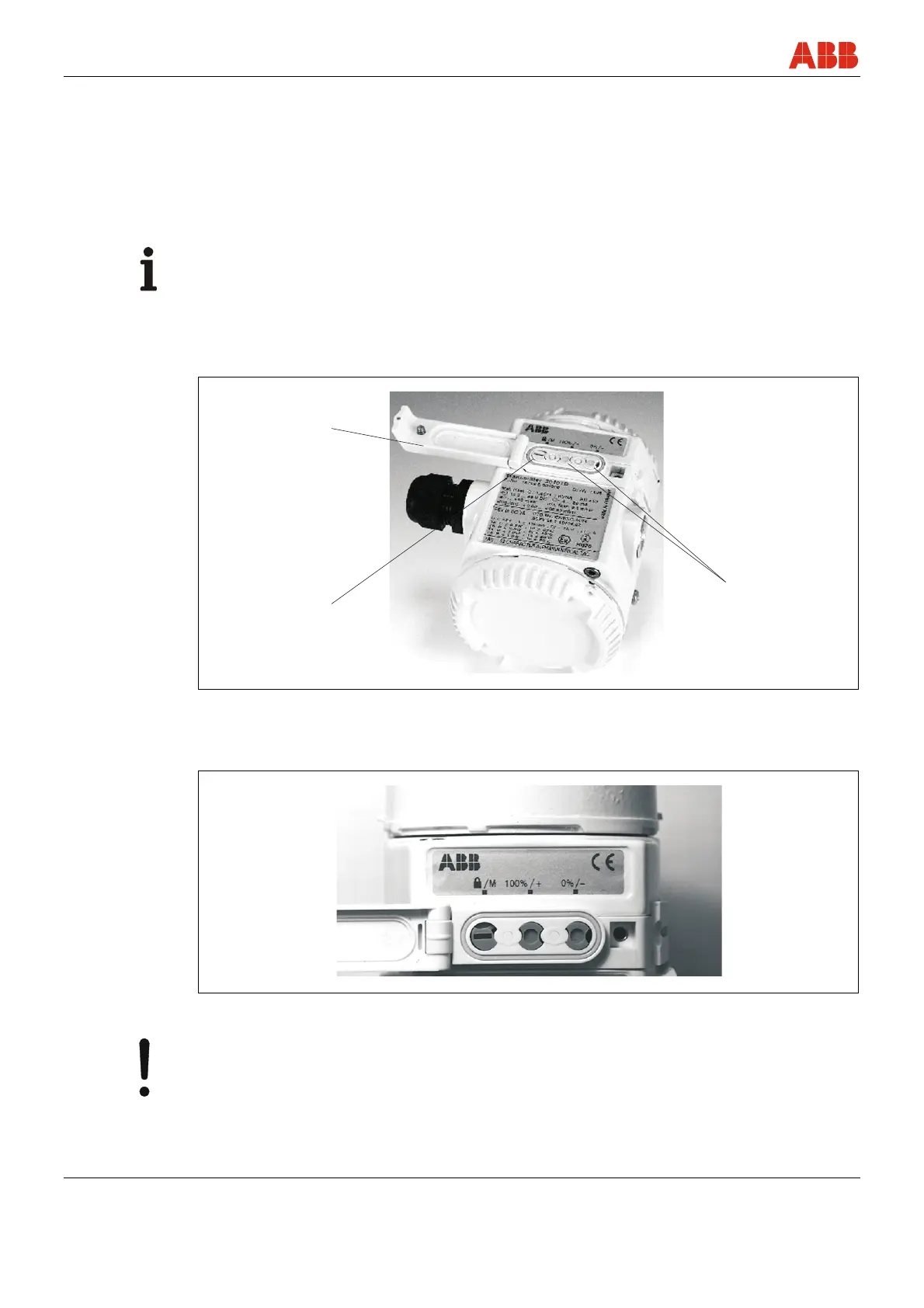

M00054
1
2
3
Fig. 18: Operating elements
1 Protective cap
2 Mode pushbutton (M)
3 Control buttons
M00055
Fig. 19: Plate with button legend, etc.
NOTICE - Potential damage to parts!
Operating the control buttons with a magnetic screwdriver is not permitted.
