Second line
In the second line, the unit is displayed in the last five columns. The first column shows the
symbols listed below. If necessary, these symbols can also be displayed one after the other.
The symbol displayed is changed in cycles of one second.

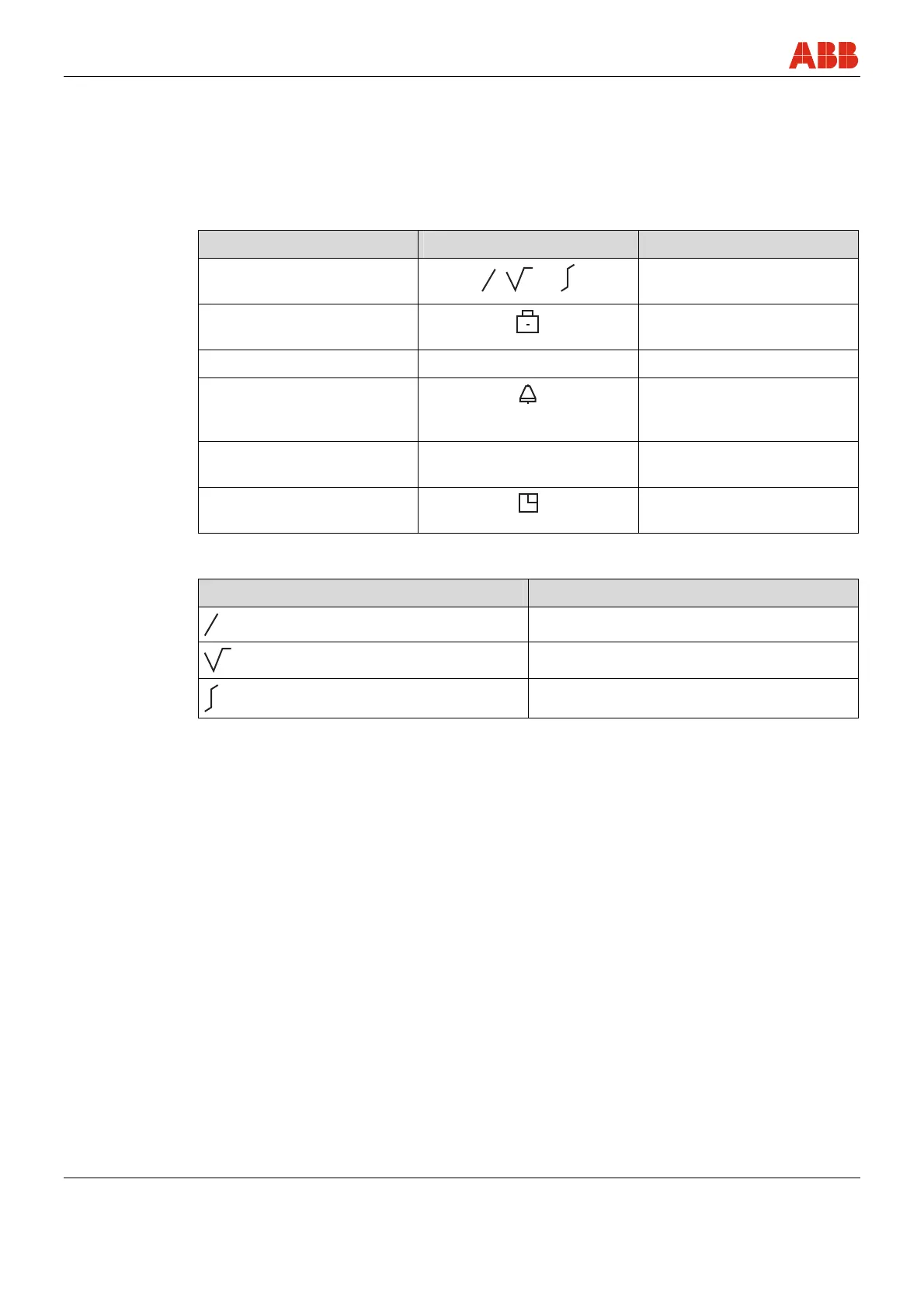

Explanation of the symbols
Display for Symbol Comment
Transmission function
, , or
One of these symbols is
always displayed.
Write protection
Only when write protection is
set
Cyclic communication . . . . Only with PROFIBUS PA
Status available (e.g.,
measuring range exceeded or
hardware error)
Only when a status is
available
Display value code 1 … 9 Menu display (see the section
"Menu structure")
The transmitter is busy.
This symbol overrides other
symbols.
Transmission function symbols
Symbol Description
Linear
Square root
Freely programmable characteristic
