Section 2 Installation Installing SM811/TP868

3BSE036351-510 A 109

Connection of Input Signals to SM811

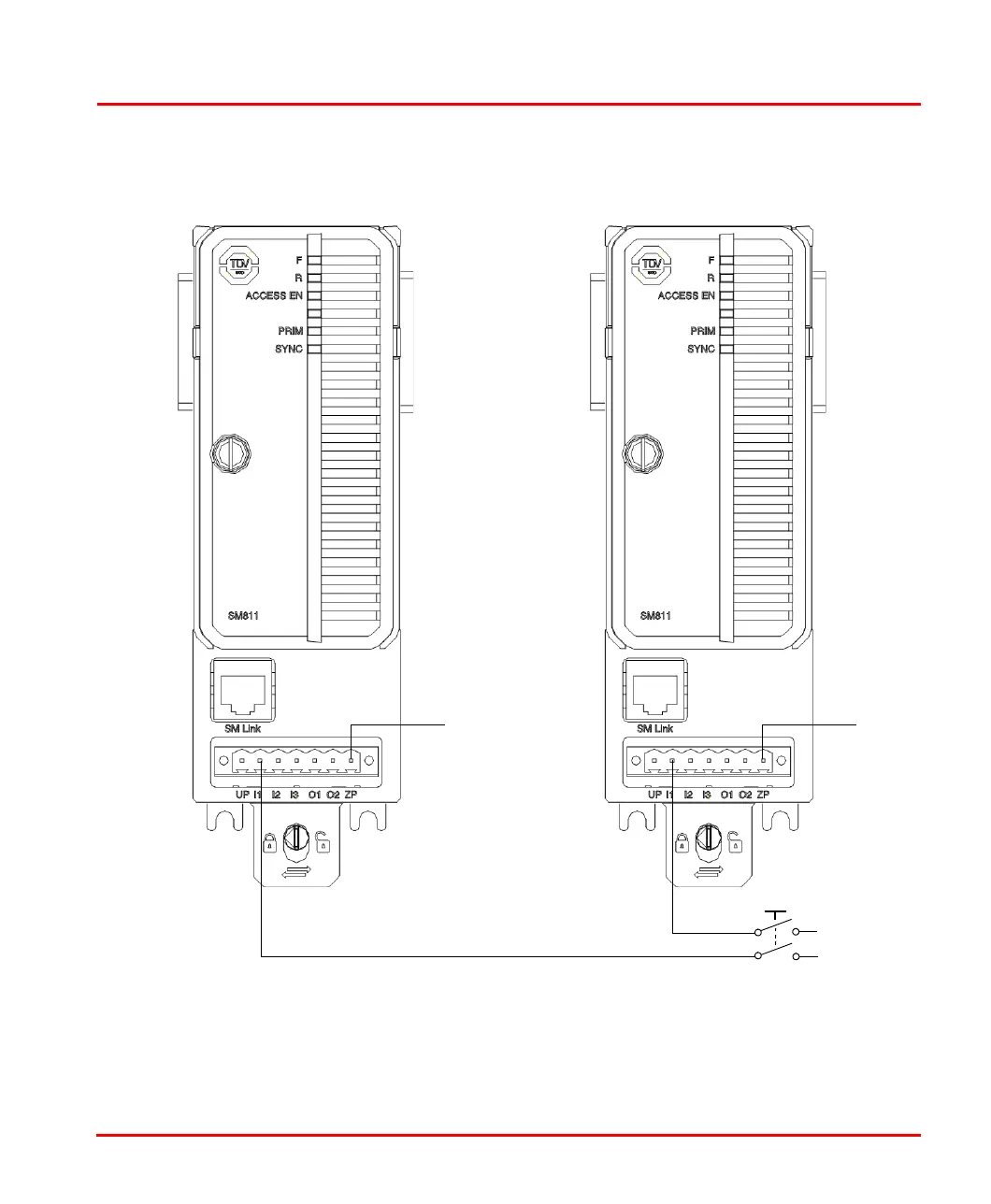

Figure 37. Connection of input signals to redundant SM811

0V A0V B

24V A

24V B

I1: Reset all forces

I2: Access enable

I3: Hot-insert of SM
