Installing SM811/TP868 Section 2 Installation

110 3BSE036351-510 A

Connection of Output Signals to SM811

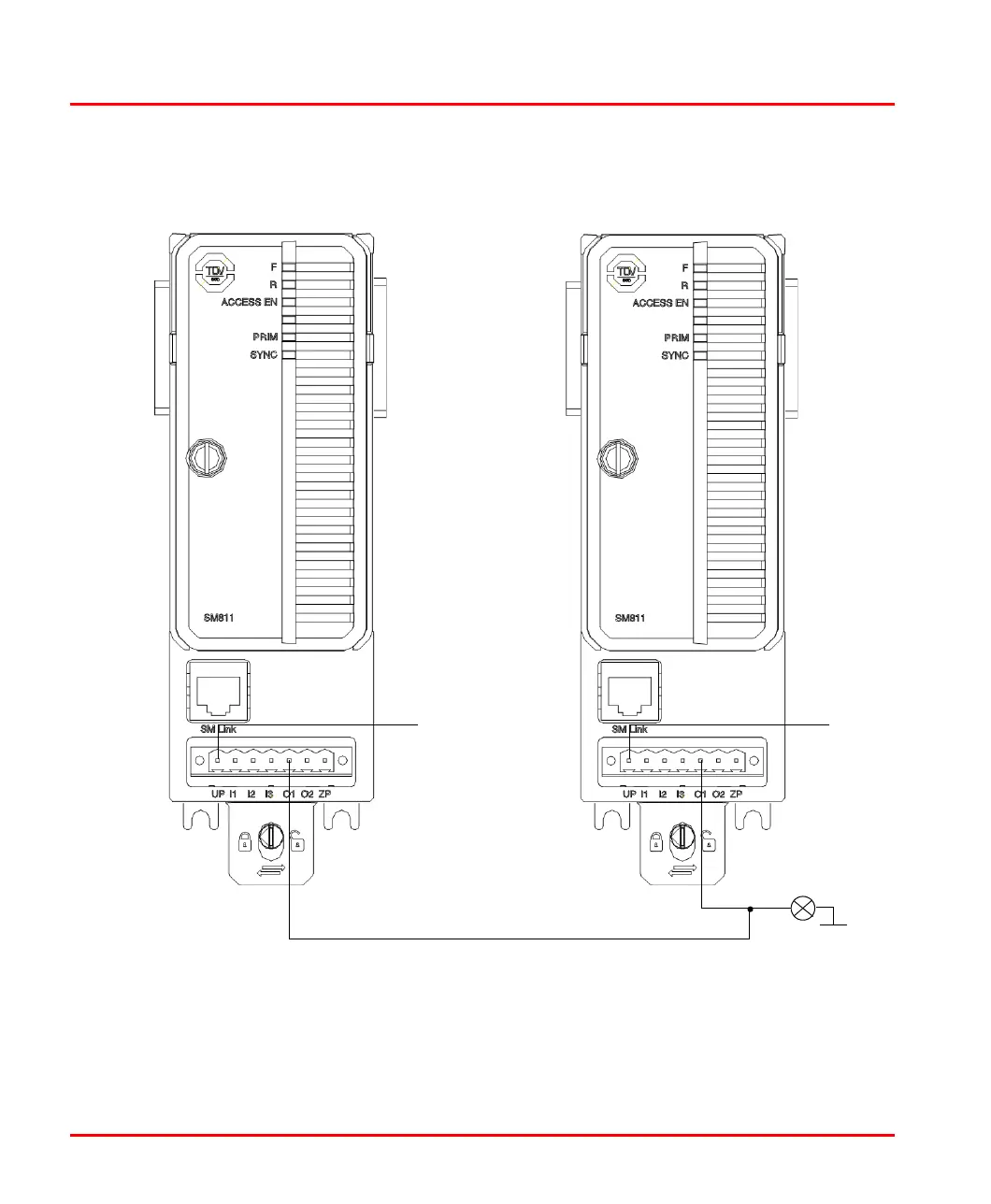

Figure 38. Connection of output signals from redundant SM811

24V A24V B

O1: Any force active

O2: System alarm
