NOTICE!
Make sure that to download CoDeSys Non-safety project either “Tcp/Ip” or “Serial(RS232)”
communication channels were selected and, respectively, to download CoDeSys Safety
project, either “ABB Tcp/Ip Level 2 AC” or “ABB RS232 AC” communication channels were
selected.

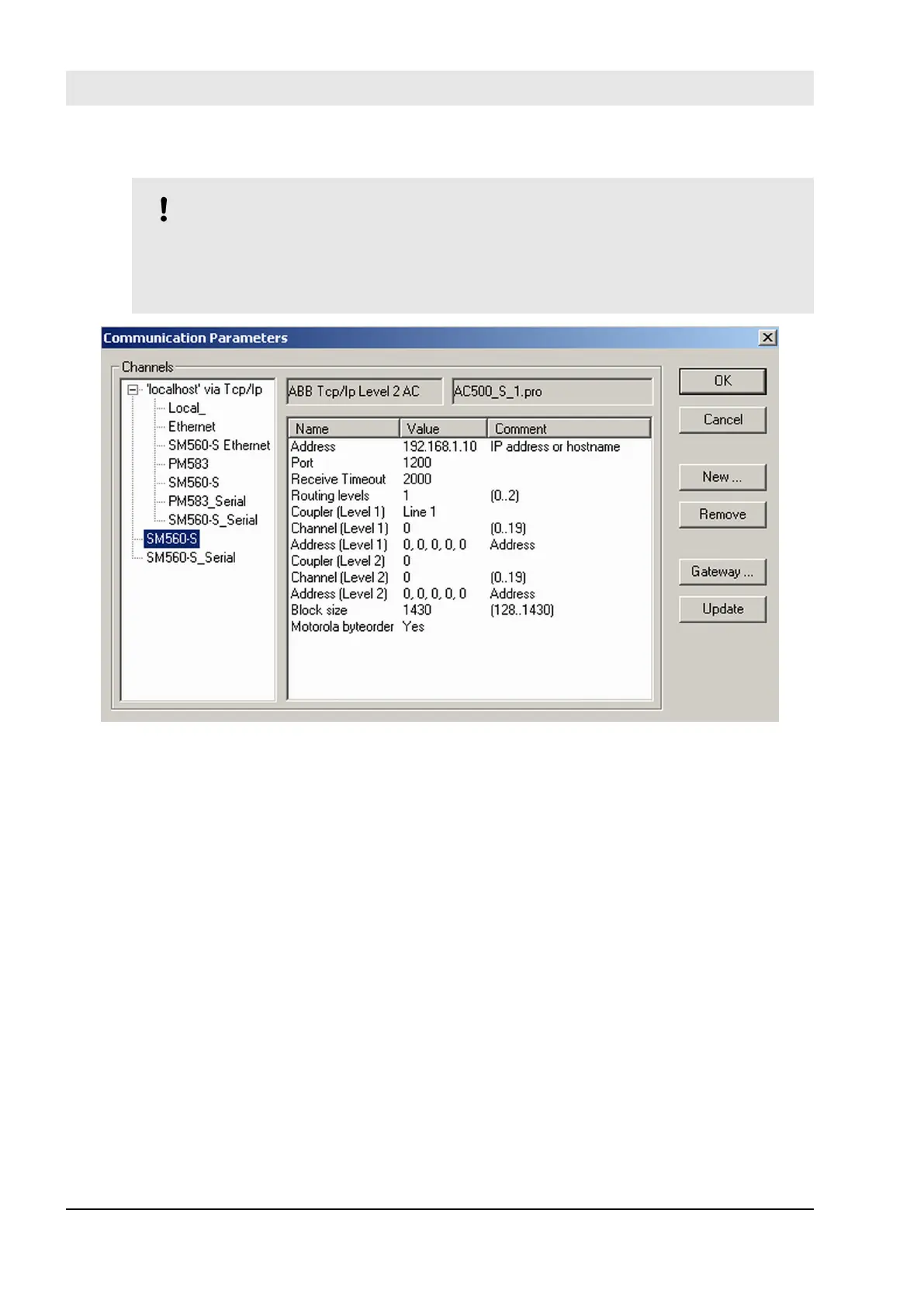

Fig. 93: Example with Ethernet connection
Note that “Address” is the IP address of your Non-safety CPU (you can also use COM port for pro-
gram download using serial connection). Coupler (Level 1) defines the position of SM560-S Safety
CPU (Line 1 – Position 1, Line 2 – Postion 2 and so on).
Configuration and programming
System configuration and programming > Programming of AC500-S Safety CPU
30.03.2017AC500-S206
