min. 300 mm (12 in)
min. 300 mm (12 in)
min. 500 mm (20 in)
min. 500 mm (20 in)
min. 200 mm (8 in)
90°
1
2 4
4
3
2
1
3
2
3
Motor cable1
Input power cable2
Control cable3
Brake resistor or chopper cable (if any)4
￭
General guidelines – North America
Make sure that the installation is in accordance with national and local codes. Obey
these general guidelines:
• Use separate conduits for the input power, motor, brake resistor (optional),
and control cabling.
• Use separate conduit for each motor cabling.

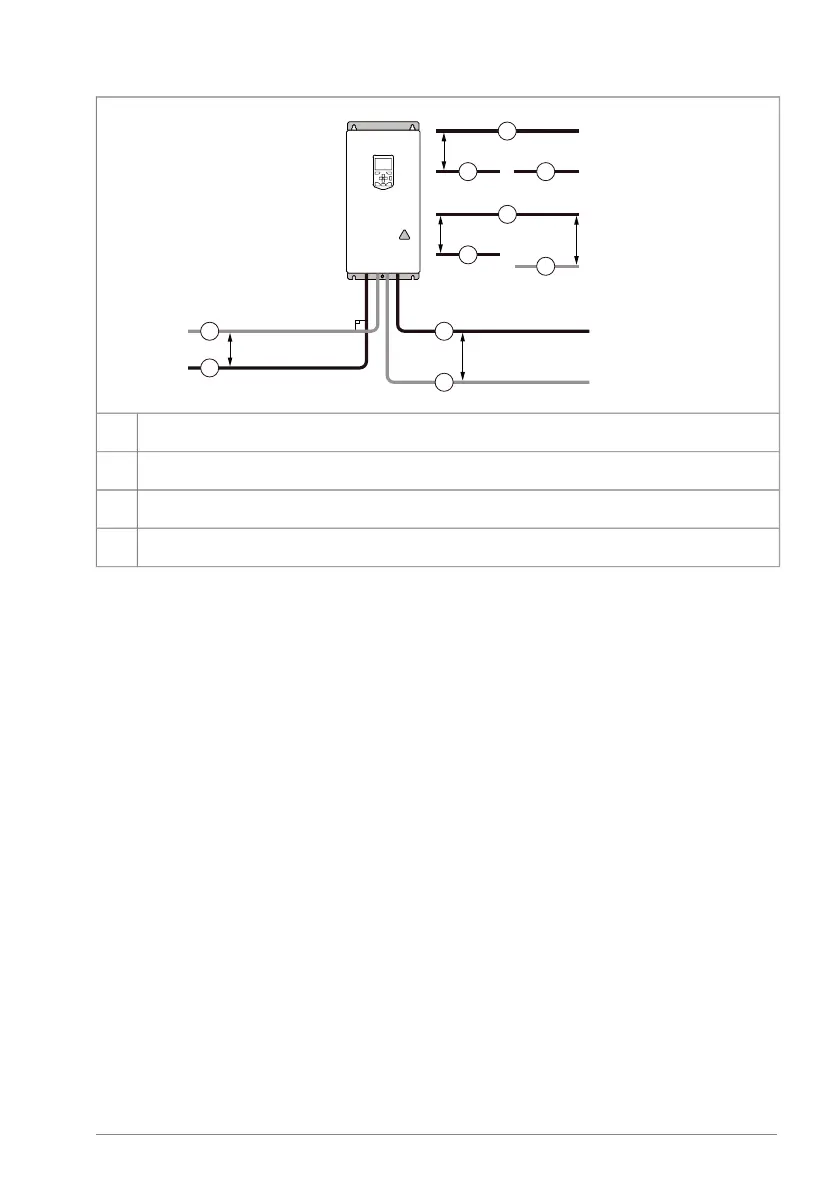

The following figure illustrates the cable routing guidelines with an example drive.
