86 AO2000 CONTINUOUS GAS ANALYZERS | OI/AO2000-EN REV. B

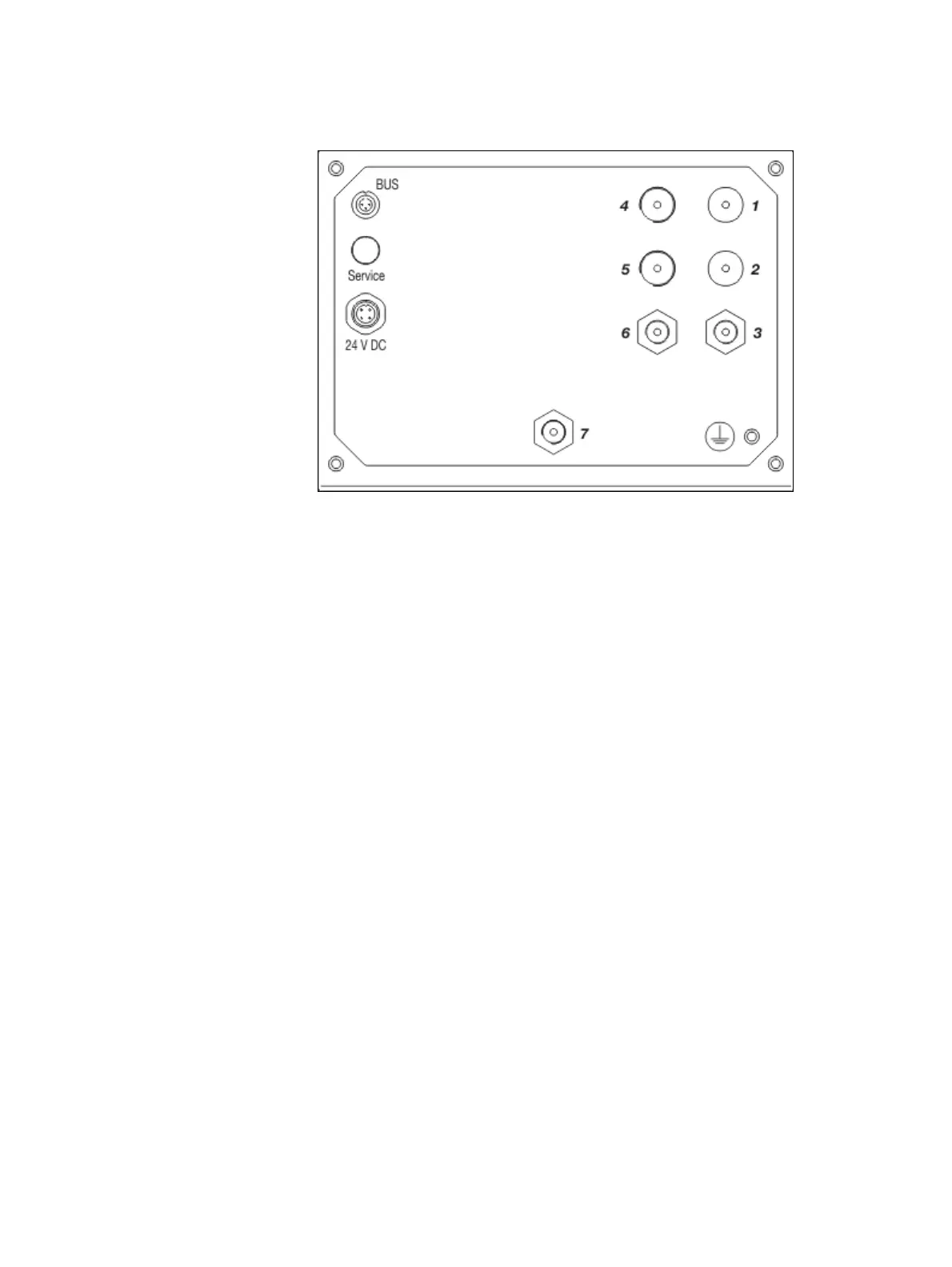

Limas11 IR, Limas21 UV:
Safety cell
1
Sample gas inlet (stainless steel tube with 4 mm outside diameter)
2
Sample gas outlet (stainless steel tube with 4 mm outside diameter)
3
Housing purge gas inlet
1)
4
Purge gas inlet sample cell (FPM tube 4x1.5)
5
Purge gas outlet sample cell (FPM tube 4x1.5)
6
Housing purge gas outlet
1)
7
Pressure sensor
1) Option
Design of the gas connections unless stated otherwise:
⅛ NPT female thread for threaded connections (not supplied)
