AO2000 CONTINUOUS GAS ANALYZERS | OI/AO2000-EN REV. B 95
ZO23: Gas connections
Gas connections
The sample chamber is connected to the sample gas inlet connection via a
stainless steel tube on the inlet side and to the sample gas outlet connection
via an FPM hose on the outlet side.

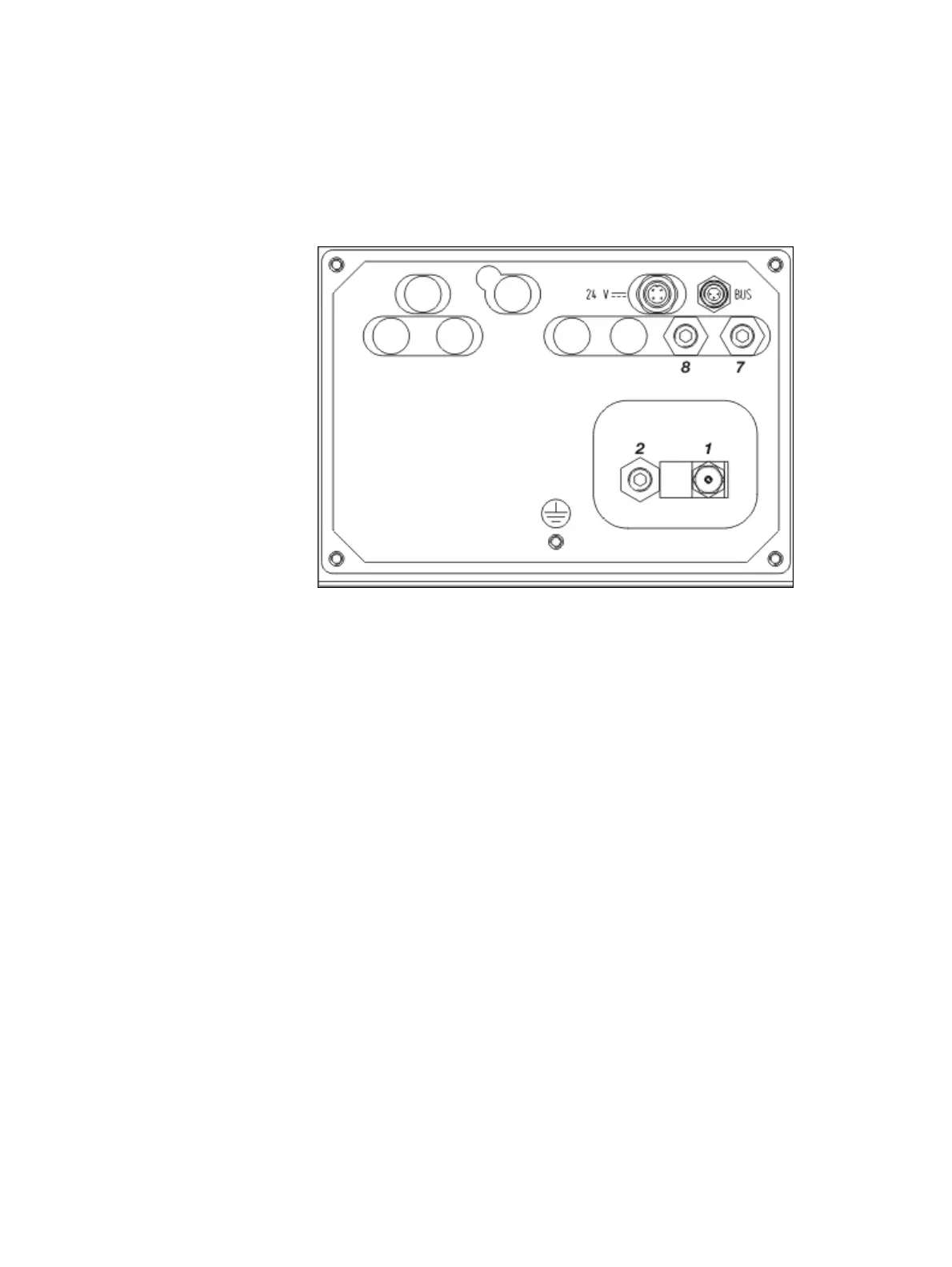

1
Sample gas inlet (3 mm Swagelok®)
2
Sample gas outlet (â…› NPT female thread)
7
Purge gas inlet for housing (only in IP54 version)
8
Purge gas outlet for housing (only in IP54 version)
Design of the gas connections unless stated otherwise:
â…› NPT female thread for threaded connections (not supplied)
