AO2000 CONTINUOUS GAS ANALYZERS | OI/AO2000-EN REV. B 111
Analog input module: Electrical connections

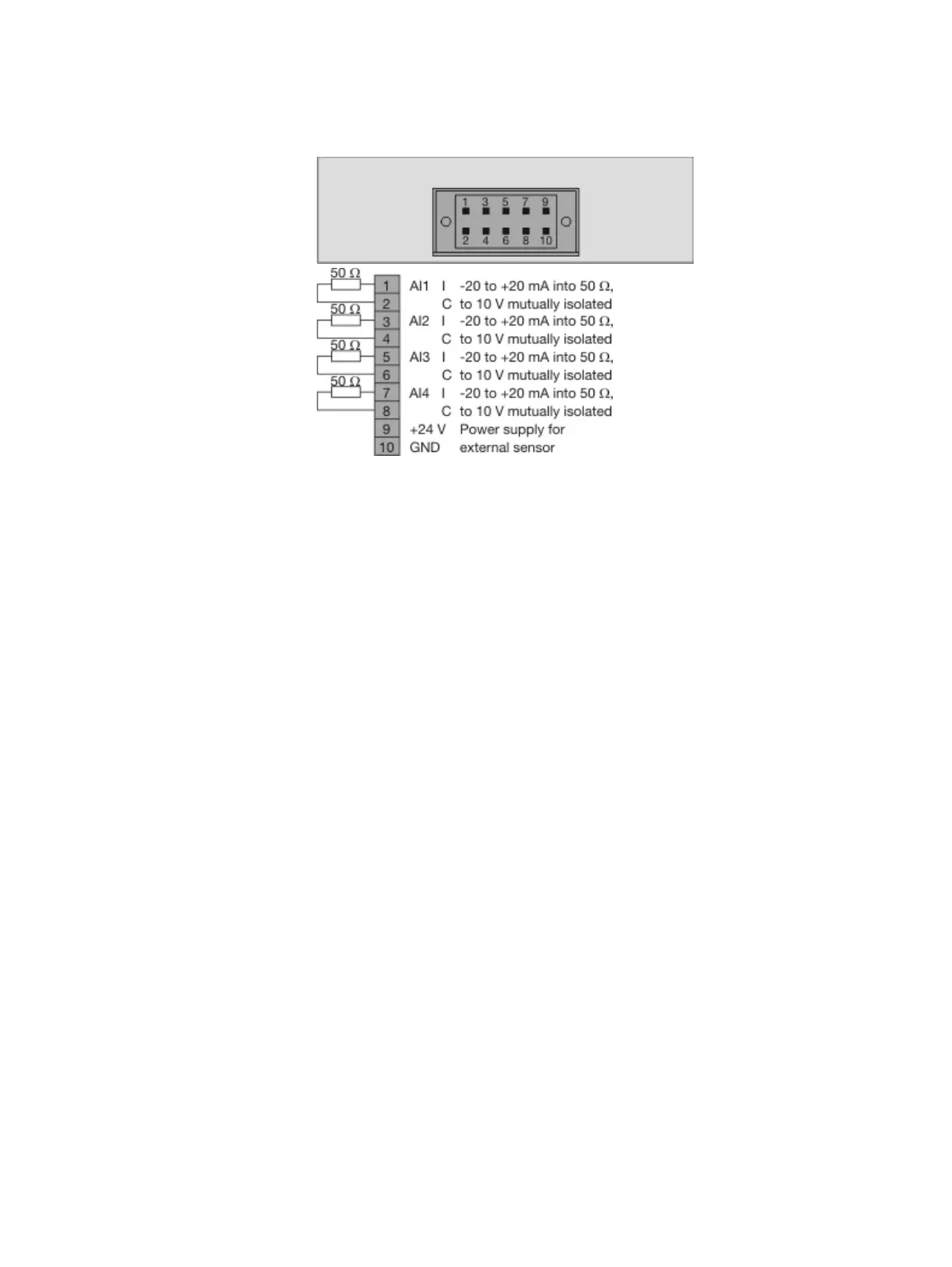

Analog inputs AI1 to AI4
0 to 20 mA, load 50 Ω
Current output +24 V
+24 V DC for supply of an external sensor, fused with 100 mA (self-resetting
fuse)
Design
2x5-pin terminal strip. Please refer to the information about the requisite
material (see page 116)!
