ABB Aztec 600

Aztec 600 ISE ammonia and fluoride
Single-stream ion-selective analyzers 3 Installation
OI/AXM630–EN Rev. I 11
3.4 Mounting
3.4.1 Mounting Dimensions
Dimensions in mm (in.)

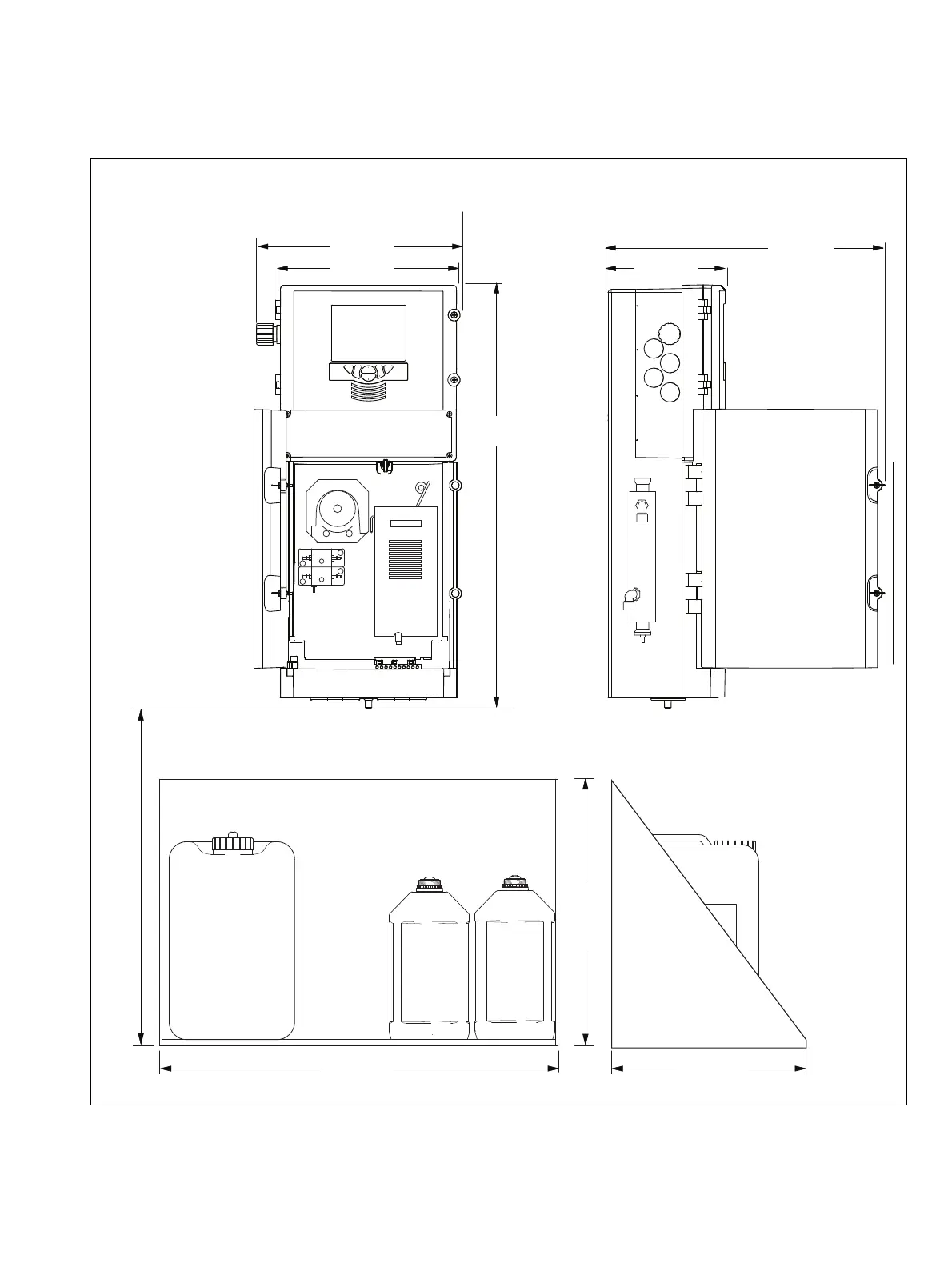

Fig. 3.2 Mounting Dimensions
315 (12.4)
279 (11.0)
653 (25.7)
430 (16.9)
183 (7.2)
600 (23.6)
400
(15.7)
300 (11.8)
Maximum Distance 1100 (43.3)
