Aztec 600 ISE ammonia and fluoride
Single-stream ion-selective analyzers 7 Logging
44 OI/AXM630–EN Rev. I
7 Logging
Data recorded in the analyzer's internal memory can be archived
to a removable Secure Digital (SD) card media. The analyzer
records all data continuously to its internal memory and keeps
track of which data has been archived.
Sample data can be saved to removable media as either
binary-encoded or comma-separated files.
Additional files can also be archived:
Alarm event log data
Audit log data
Configuration files
Screen capture images

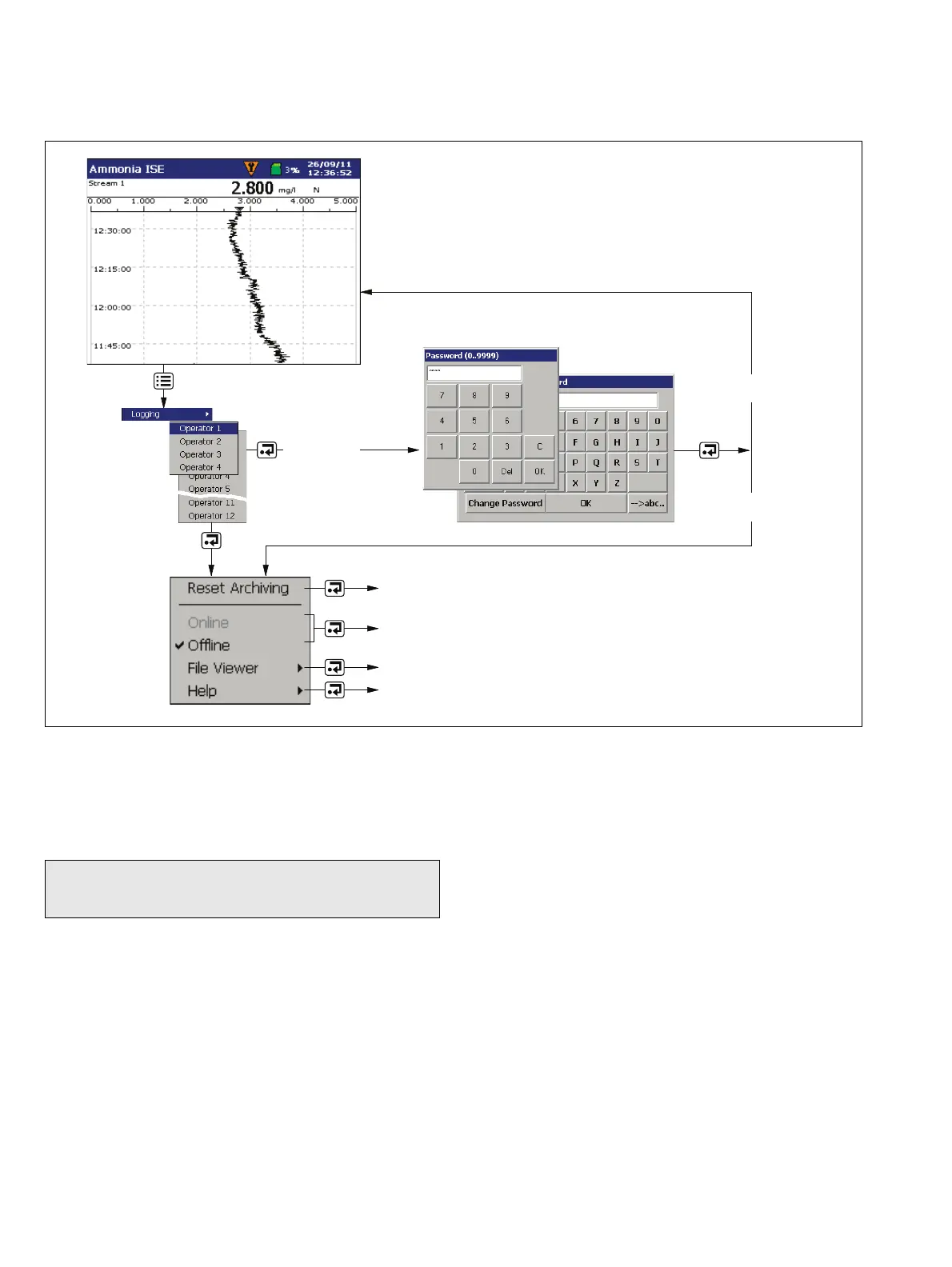

Fig. 7.1 Recording and Archiving
Invalid
Password
Valid
Password
No Password
Required
Password
Required
(if set)
Resets Archiving – see Section 7.2, page 46
Switches the Removable Media Online / Offline
Opens the File Viewer – see Section 7.3, page 46
On-Line Help – see Section 4.2, page 23
Note. ABB’s DataManager Pro software can be used to
store and view data archived from the analyzer.
