ABB CoreSense M10 - Configuring Analyzer ID and Date;Time

12 Installation Guide
Analytical unit
As part of the CoreSense M10 multi-gas monitoring system, the analytical unit is where gases extracted
from the transformer are analyzed. Analysis results allow for prevention of incipient transformer faults.
It is also the part of the system equipped for external communication and system configuration.
—

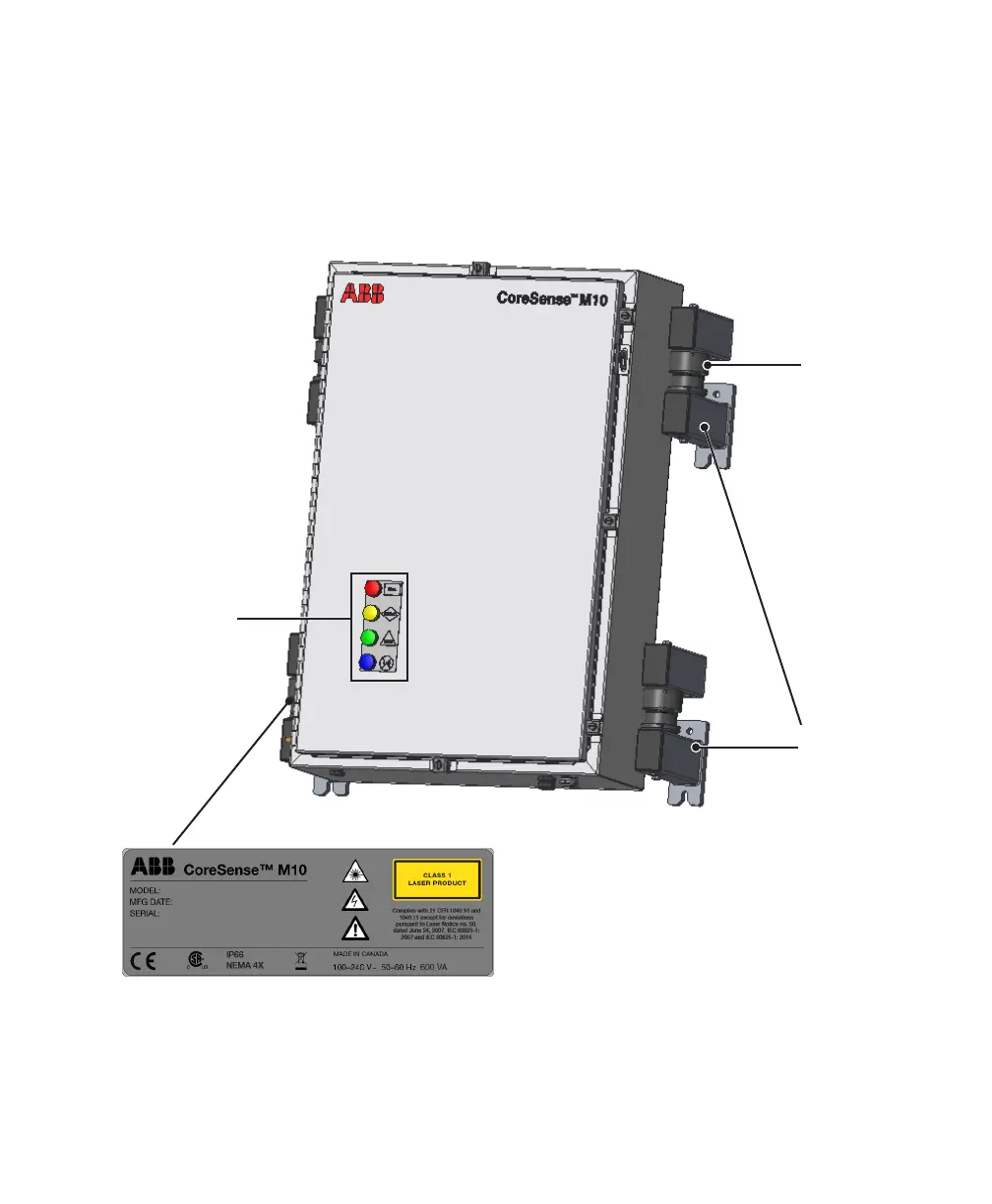

Figure 2 Overview of the CoreSense M10 analytical unit (closed)
Status LEDs
Shock absorbers
(×4)
Mounting posts
(×4)
